P1036102-007 ZXP Series 7 Card Printer Service Manual 51
Replacement Procedures for the Printer
Procedures: Right Cover
Right Cover

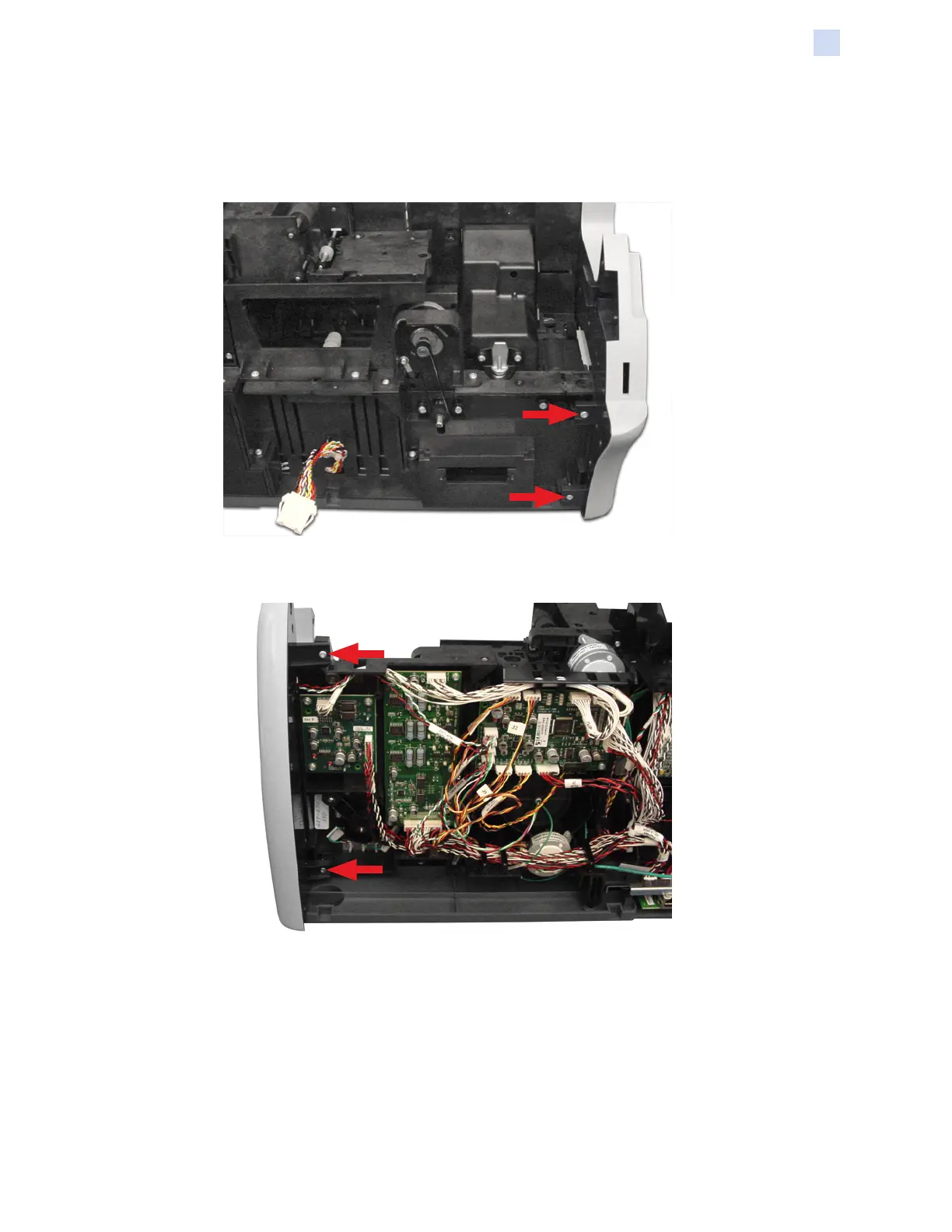

Step 1. From the front of the Printer: With a TORX T10 driver, remove the two screws
holding the Right Cover in place.
Step 2. From the back of the Printer: With a TORX T10 driver, remove the two screws
holding the Right Cover in place.
