242 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Laminator

Procedures: Laminator Heater Assembly

Laminator Heater Assembly

Hot Surface • Halogen Bulbs produce intense heat. Use caution when handling the

Laminator Heater Assembly.

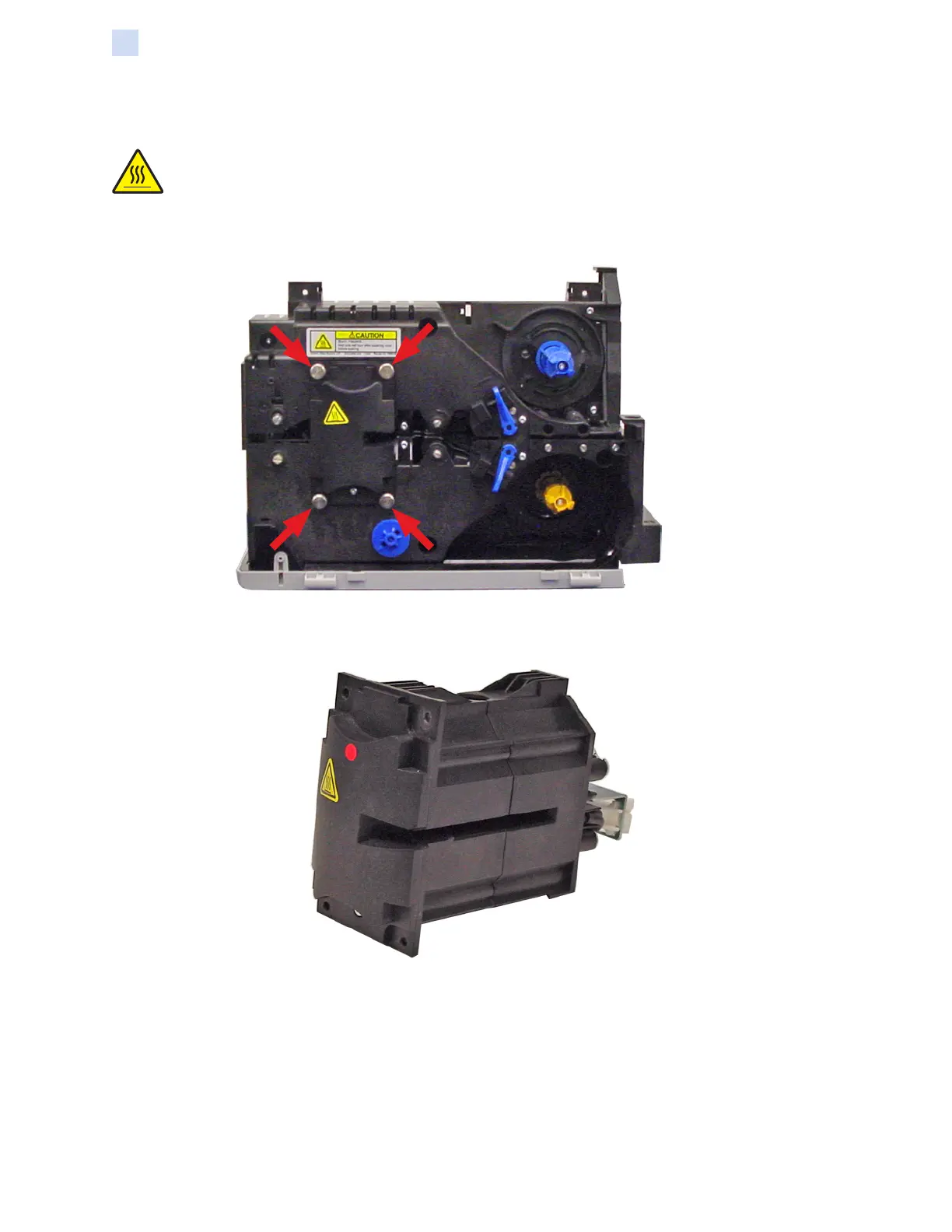

Step 1. Remove the four thumbscrews (indicated below) holding the Laminator

Heater Assembly in place.

Step 2. Slide the Laminator Heater Assembly out of the Laminator.
