Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 137
Replacement Procedures for the Printer
Procedures: Feeder/Flipper/Options Assembly
Feeder/Flipper/Options Assembly

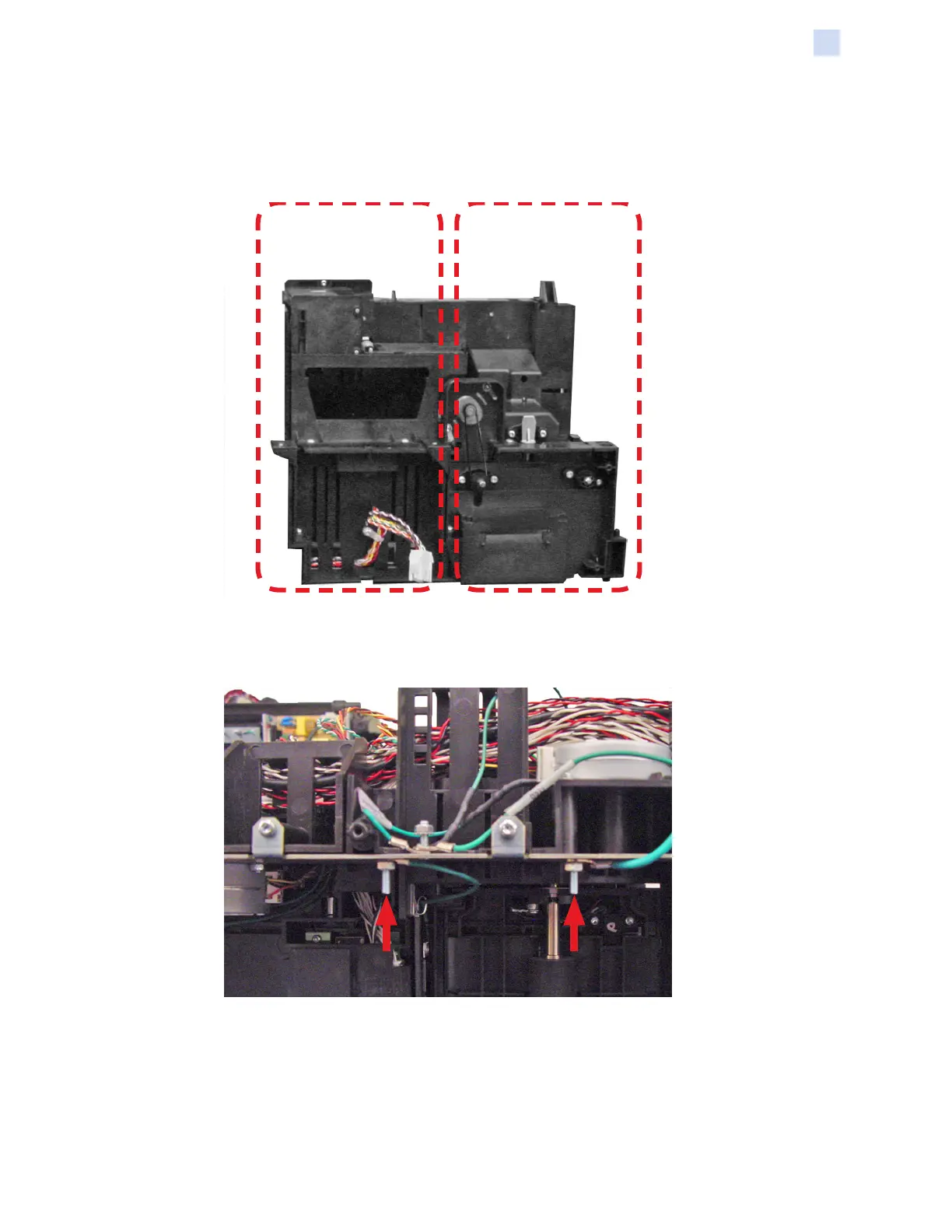

Step 1. The Feeder/Flipper/Options Assembly is comprised of two modules: the
Feeder/Flipper Module and the Options Module.
FEEDER/FLIPPER OPTIONS
Step 2. From the bottom of the Options Module: With a 5.5-mm nut driver, remove
the two nuts (arrows below) holding the grounds in place; and remove the
grounds.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
