138 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Feeder/Flipper/Options Assembly

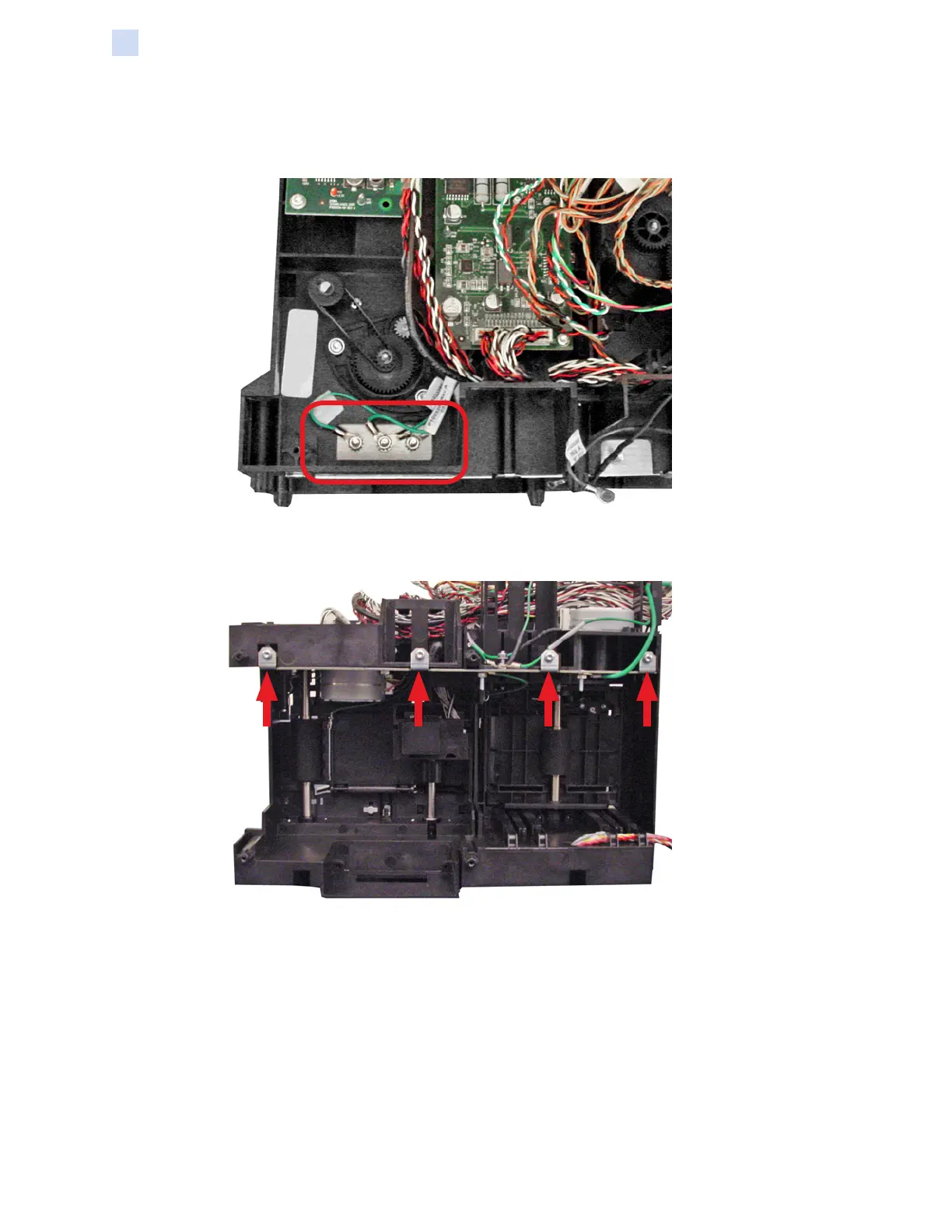

Step 3. From the back of the Options Module: With a 5.5-mm nut driver, remove the
three nuts (circled below) holding the grounds to the Grounding Plate; and
remove the grounds.
Step 4. From the bottom of the Options Module: With a TORX T10 driver, remove the
four screws holding the Print Engine Ground Plate in place.
To Next Page
