P1036102-007 ZXP Series 7 Card Printer Service Manual 209
Replacement Procedures for Factory Installed Options
Procedures: Pressure Roller Assembly
Pressure Roller Assembly
Removal
This procedure applies to both MAG and non-MAG pressure roller assemblies.

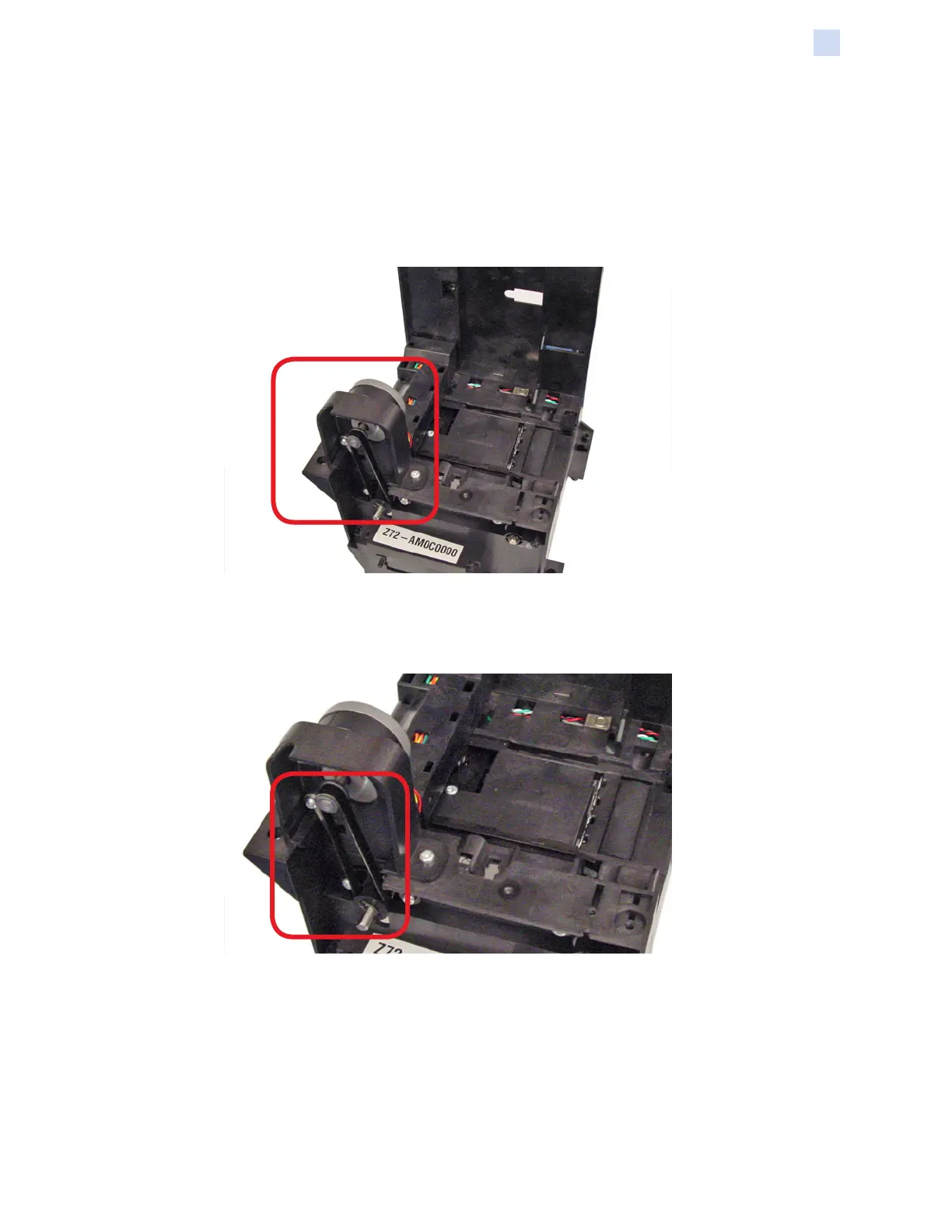

Step 1. Locate the pressure roller assembly (circle below).
Step 2. With a TORX T10 driver, remove the screw holding the pressure roller
assembly in place (arrow below).
Step 3. Remove the belt (circled below).
