P1036102-007 ZXP Series 7 Card Printer Service Manual 203
Replacement Procedures for Factory Installed Options
Procedures: MIFARE Contact Encoder PCBA
MIFARE Contact Encoder PCBA

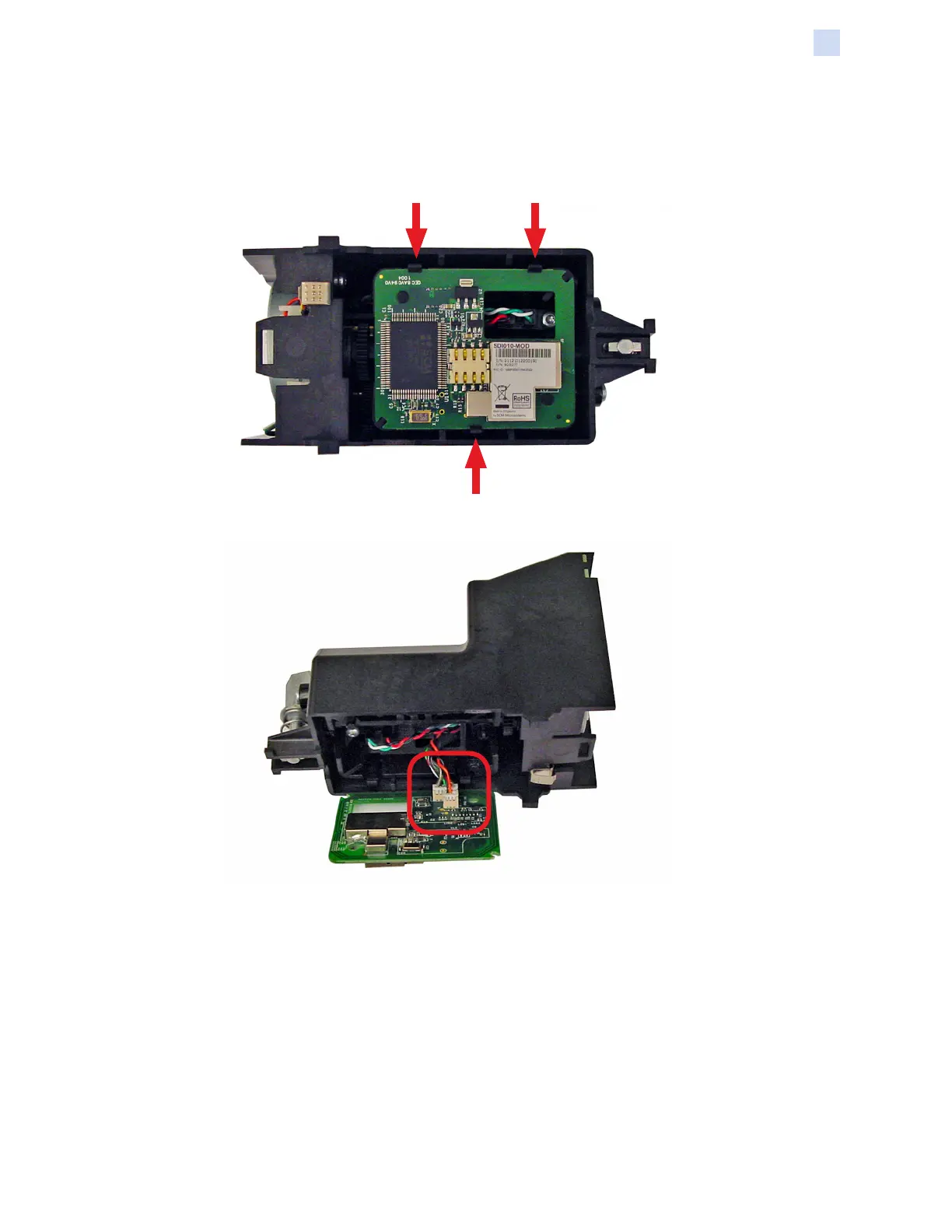

Step 1. With a small flat-blade screwdriver, release the three locking tabs (arrows
below) to free the encoder module PCBA.
Step 2. Carefully unplug the connectors (circled below).
Step 3. Remove the encoder module PCBA, and set it aside.
