354 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Base Cover and Latch Assembly
Base Cover and Latch Assembly
Removal

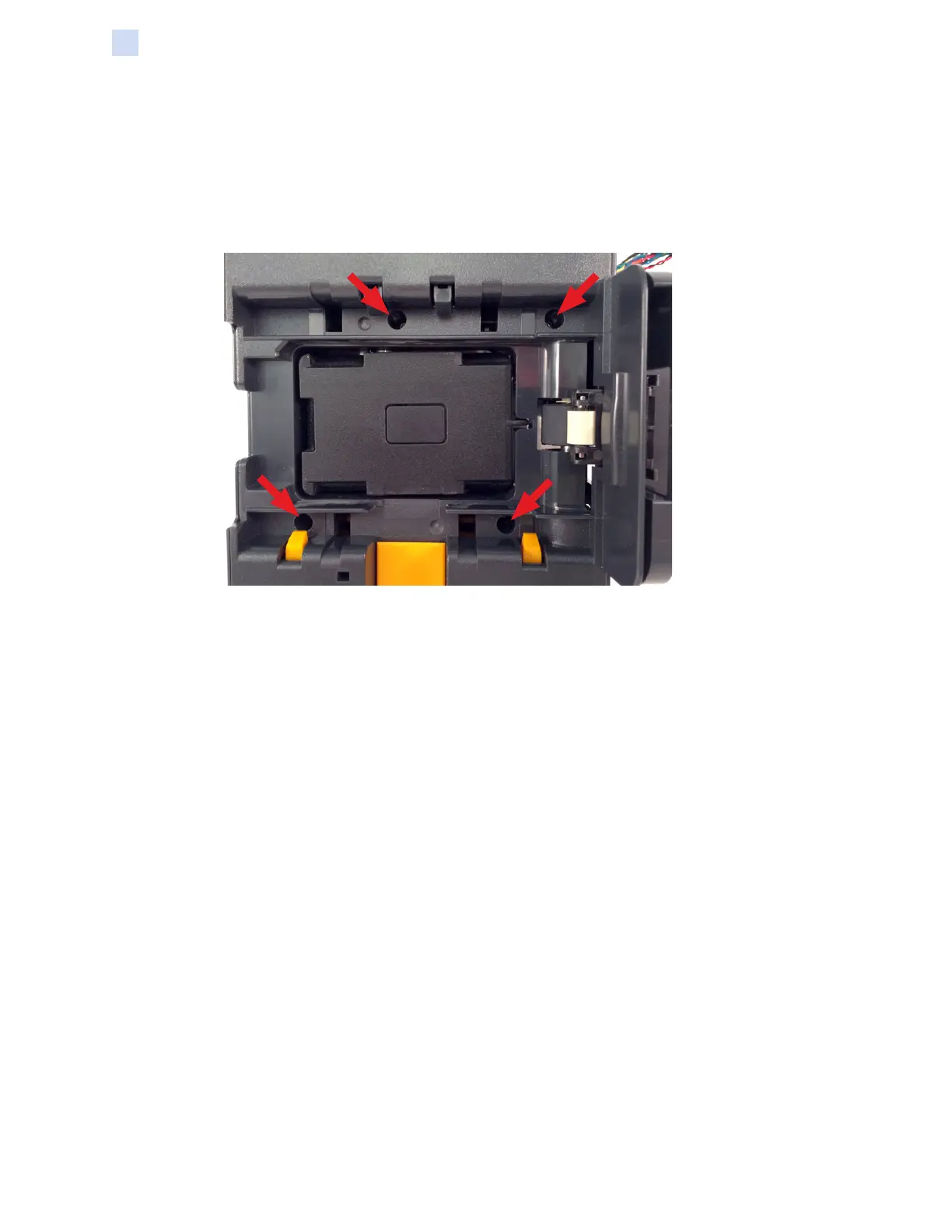

Step 1. Remove the four (4) screws securing the base cover and latch assembly to
the stacker assembly.
Installation
Step 1. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
