236 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Laminator

Procedures: Bottom Panel

Bottom Panel

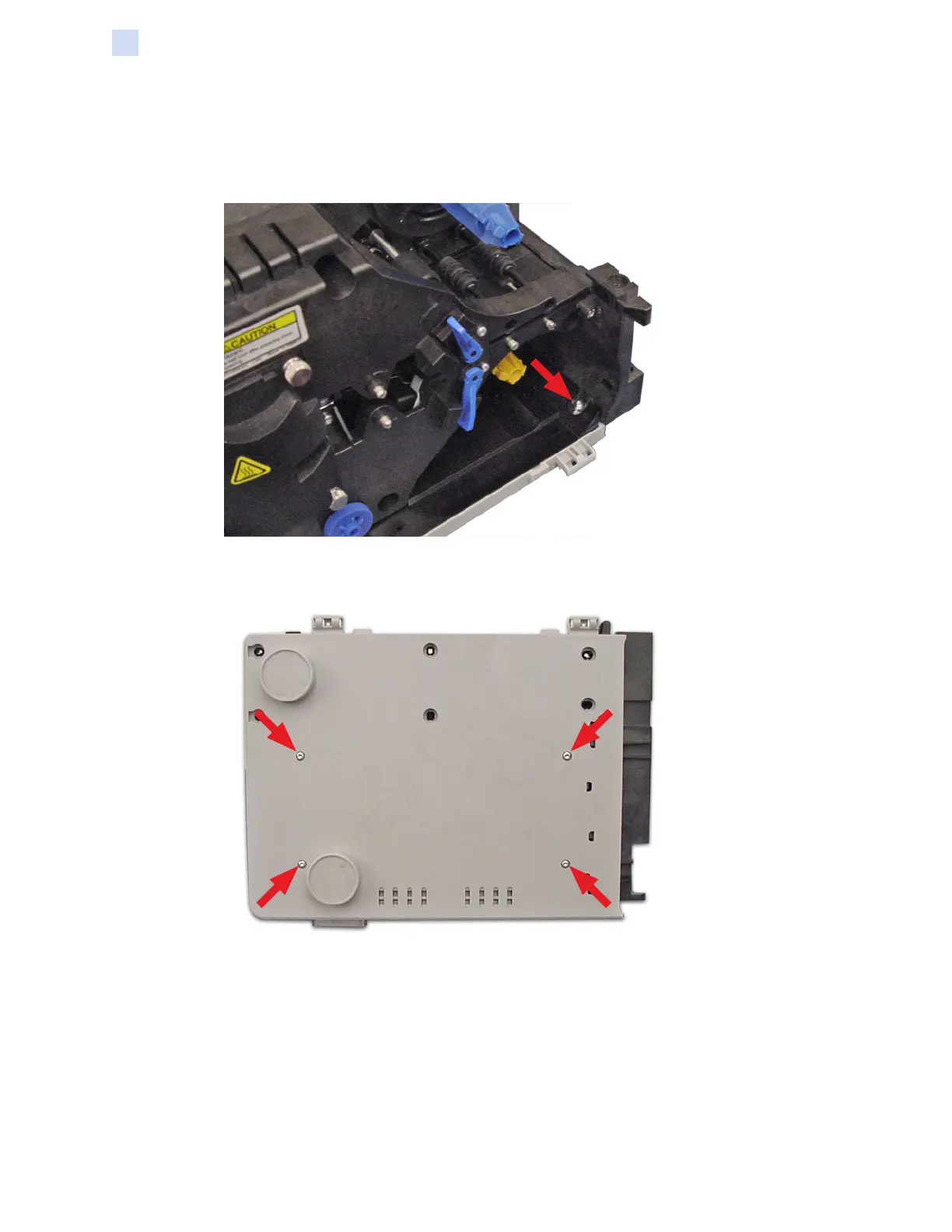

Step 1. From the front of the Laminator: With a TORX T10 driver, remove the screw

as shown.

Step 2. From the bottom of the Laminator: With a TORX T10 driver, remove the four

screws as shown.

Step 3. Set the Bottom Panel aside.
