P1036102-007 ZXP Series 7 Card Printer Service Manual 235

Replacement Procedures for the Laminator

Procedures: Laminator / Printer Separation

Laminator Test

Note • 30 mil PVC cards are required for these tests.

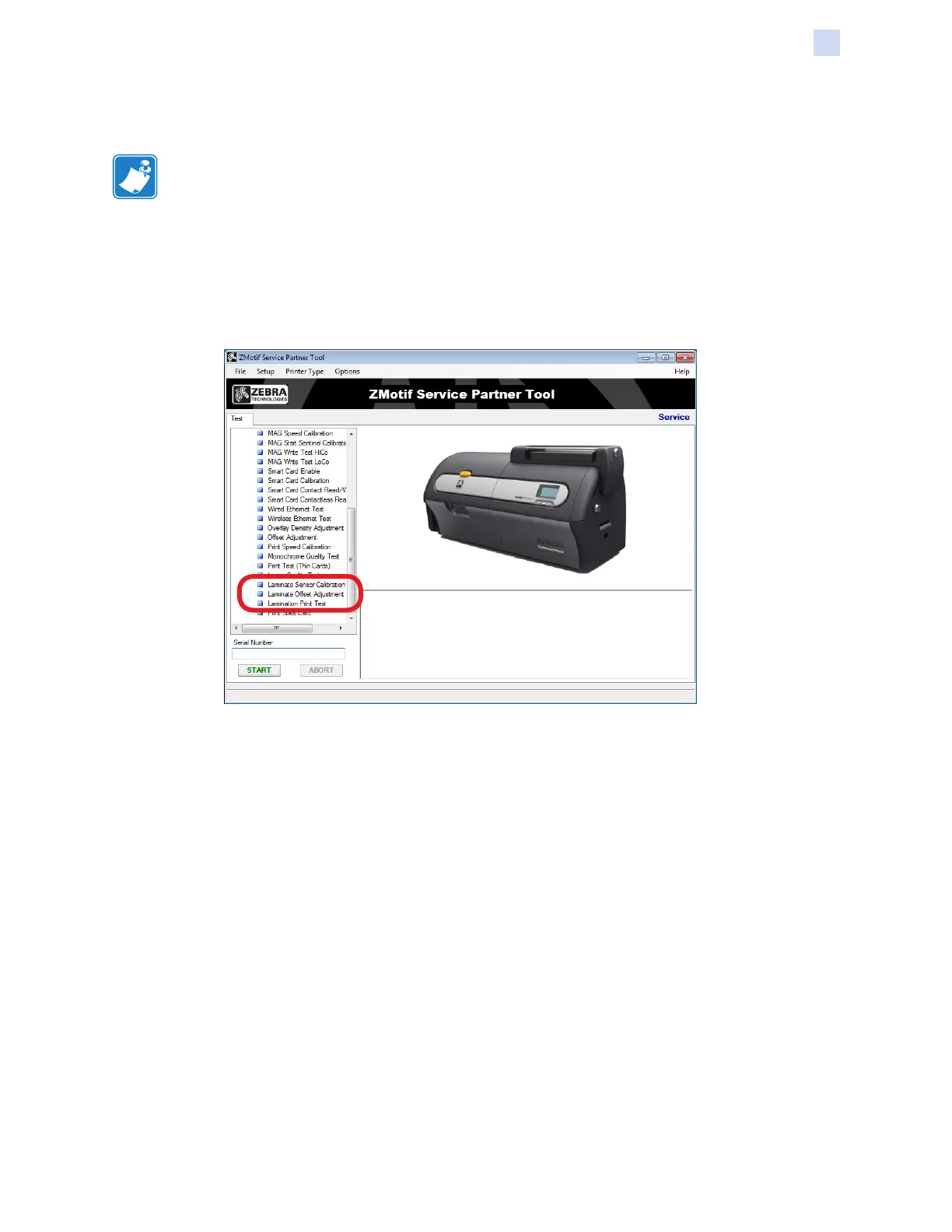

Step 1. Launch the ZMotif Service Partner Tool.

Step 2. Run Laminate Sensor Calibration.

Step 3. Run Laminate Oset Adjustment.

Step 4. Run Lamination Print Test.
