Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 227
Replacement Procedures for the Laminator
Procedures: Door Assembly (Door and Hinges)
Door Assembly (Door and Hinges)

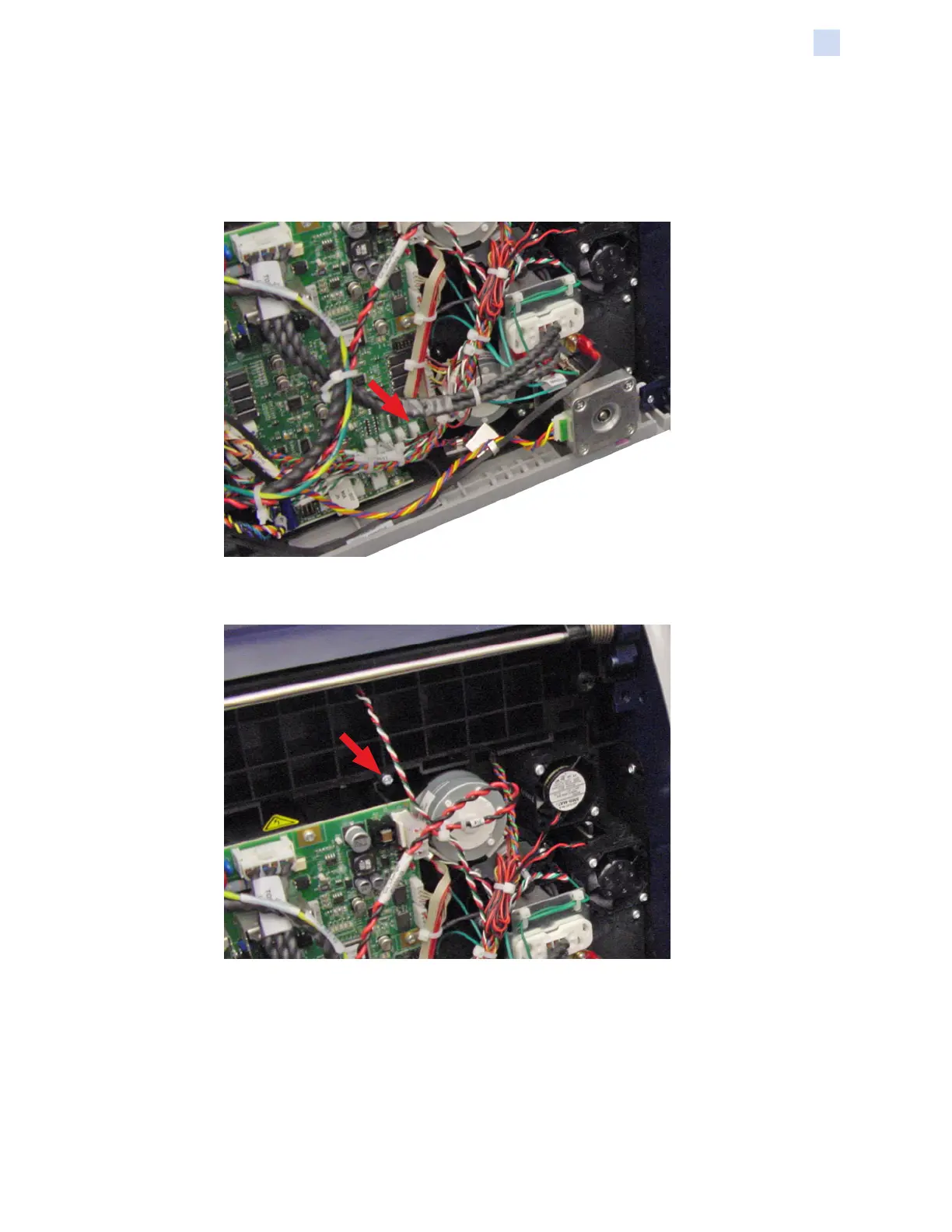

Step 1. From the back of the Laminator: Disconnect the Door Sensor at J9 on the
Main PCBA; circled below. Cut cable ties as required to free the door sensor
cable.
Step 2. With a TORX T10 driver, remove the screw holding the Door Assembly in
place; arrow below.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
