248 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Laminator

Procedures: Motor and Plate Assembly

Motor and Plate Assembly

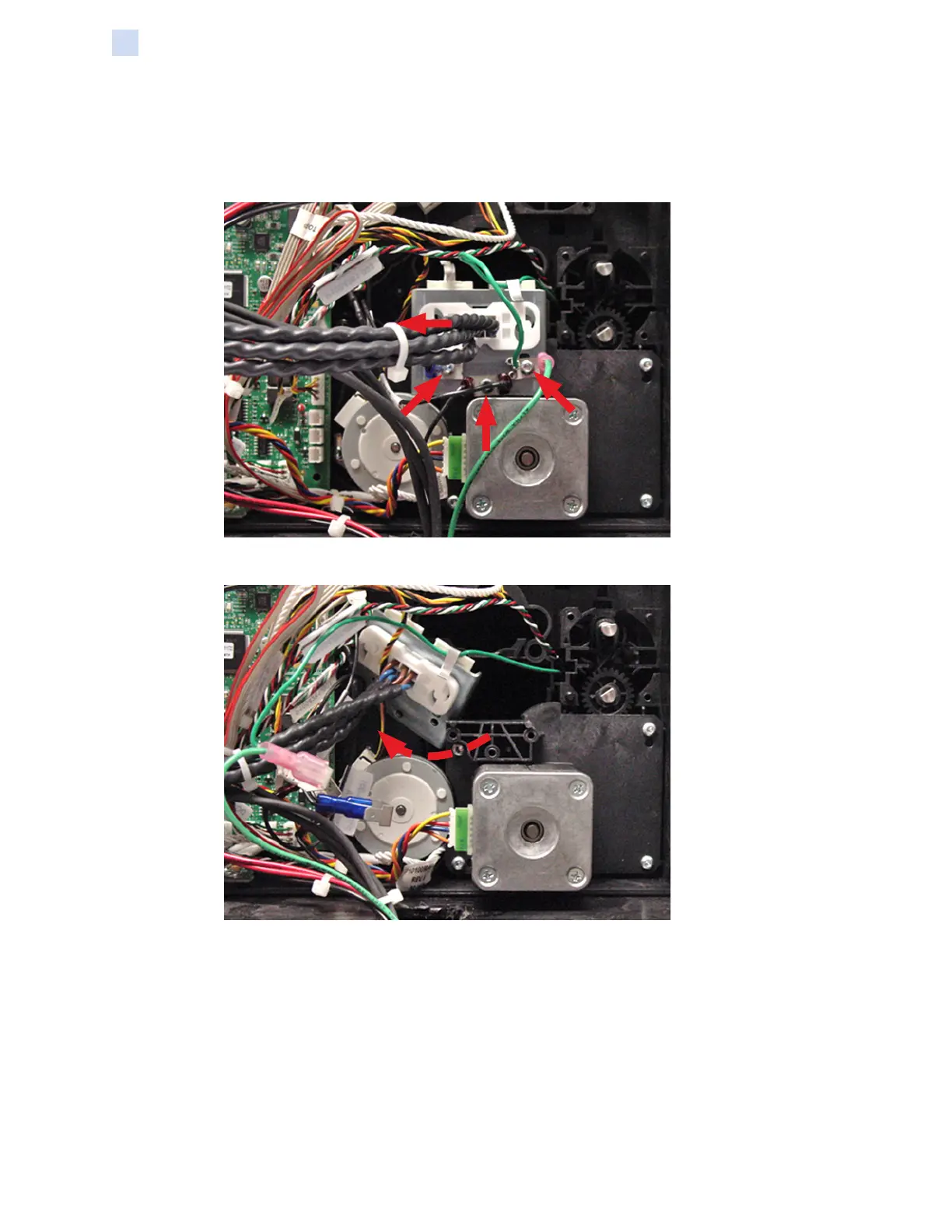

Step 1. With a TORX T10 driver, remove the three screws (circled below) holding the

Bracket to the Frame.

Step 2. Move the Bracket out of the way.
