Zebra ZXP 7 series Service Manual

26 ZXP Series 7 Card Printer Service Manual P1036102-007
Troubleshooting
Ethernet
Ethernet

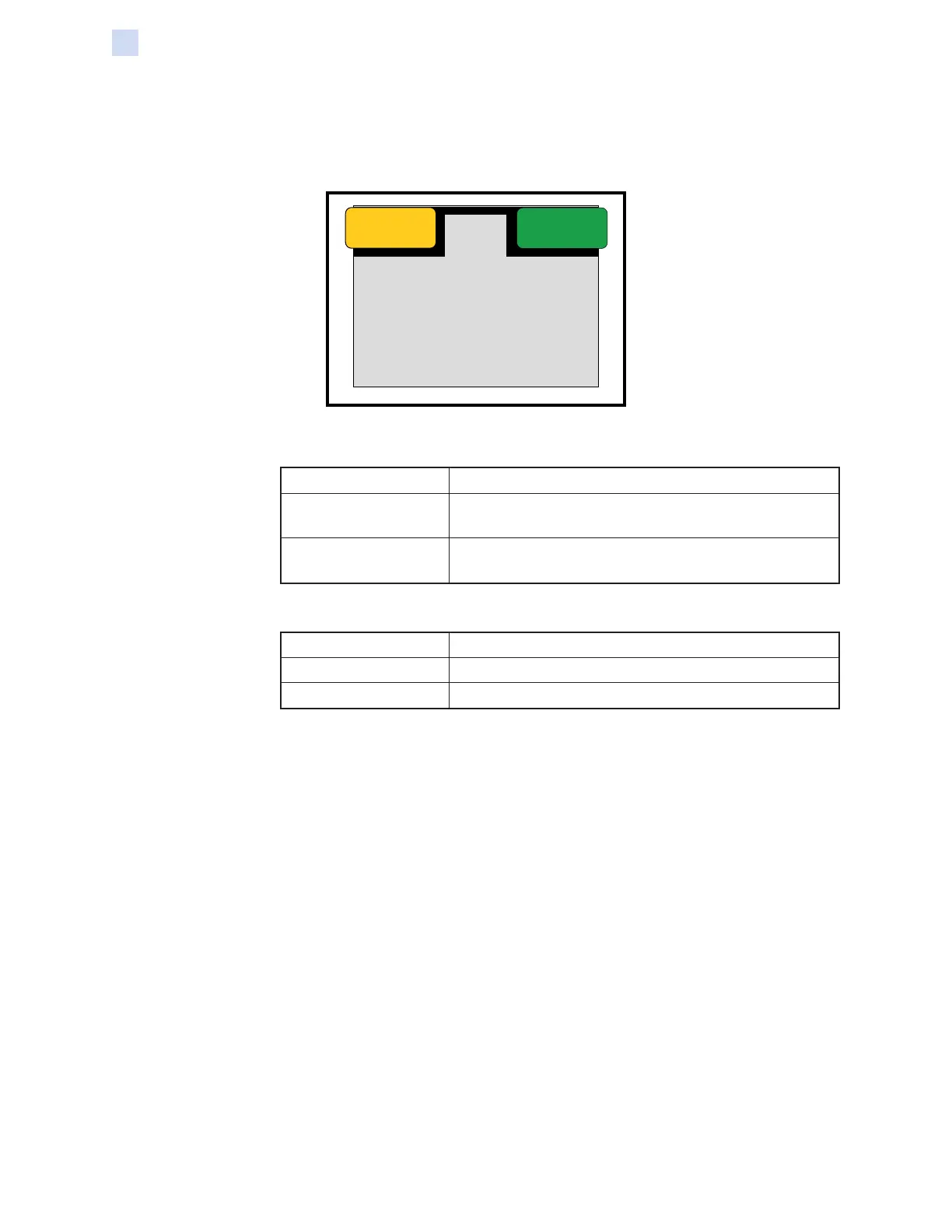

• Indicators -- Detail
• Link Speed Indicator (Orange)
O No link (disconnected)
1 Blink The LED blinks once (one blink, pause, one blink,
etc.) when a 10Base link has been established.
2 Blinks The LED blinks twice (two blinks, pause, two blinks,
etc.) when a 100Base link has been established.
• Link Activity Indicator (Green)
O No link (disconnected)
On Network link has been established
Blinking Network activity has been detected
• Issues
If both LEDs are o, the printer has not detected the presence of a network cable.
To solve the problem:
• Verify that the network cable is appropriate and has an RJ-45 connector.
• Remove the network cable from the printer. Plug the network cable back in
until you hear a positive click. Check the other end of the cable in the same
manner. If the printer still does not detect a cable, then continue.
• Connect the printer to a known good network. If the printer is still unable to
detect the network cable, contact Technical Support for assistance.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
