262 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Cassette Latch Assembly (Top & Bottom)
Cassette Latch Assembly (Top & Bottom)
Removal

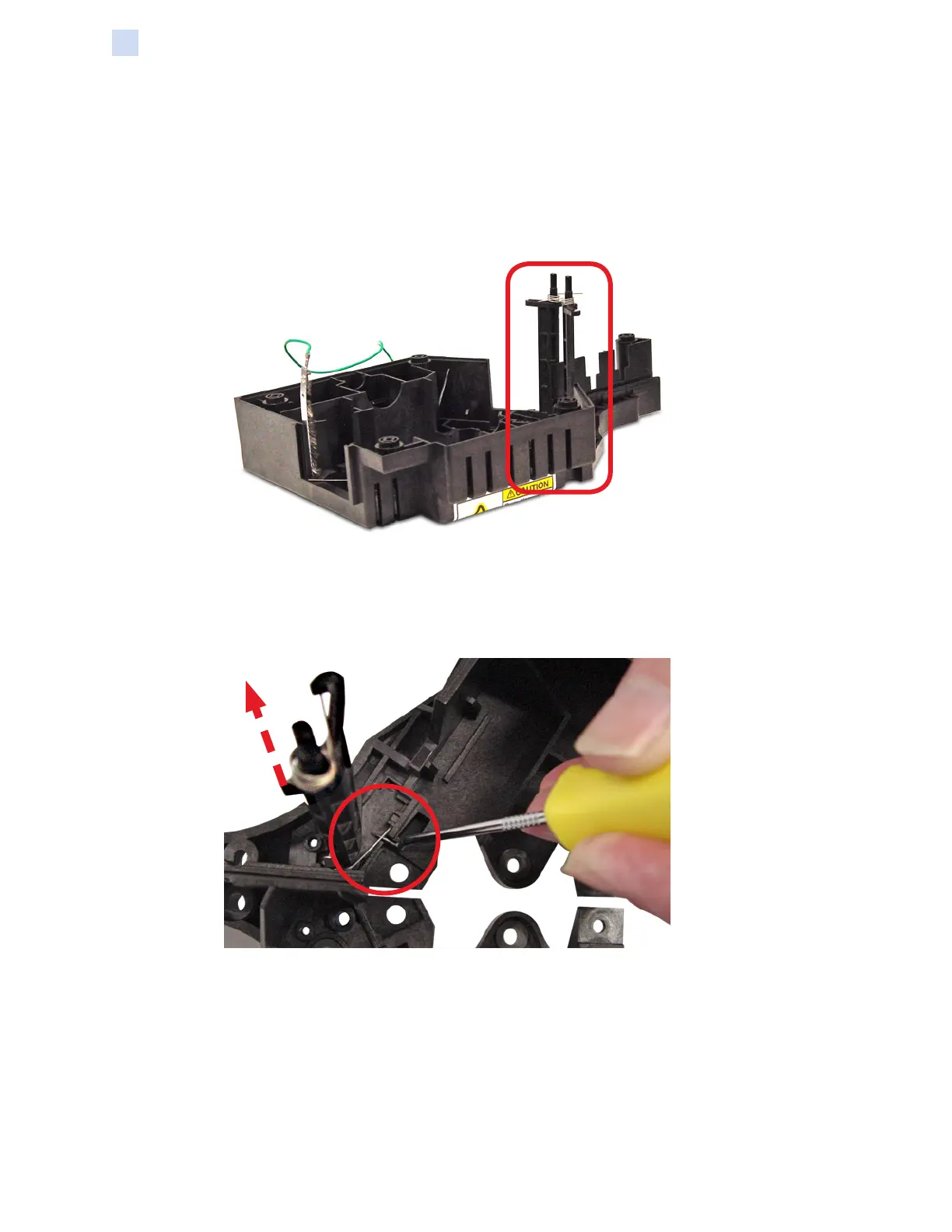

Step 1. Locate the Cassette Latch Assemblies.
Step 2. With a Spring Hook Tool, carefully release the upper Cassette Torsion Spring
(circled below), and slide the Cassette Latch and spring out of the Frame.
Step 3. With a Spring Hook Tool, carefully release the lower Cassette Torsion Spring,
and slide the Cassette Latch and spring out of the Frame.
