Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 199
Replacement Procedures for Factory Installed Options
Procedures: SmartCard Control PCBA
SmartCard Control PCBA
Step 1. If not already done, disconnect connectors J1 and J2 from OPSC MODULE
PCBA.
Step 2. Remove the options module (see “Options Module” on page 31).

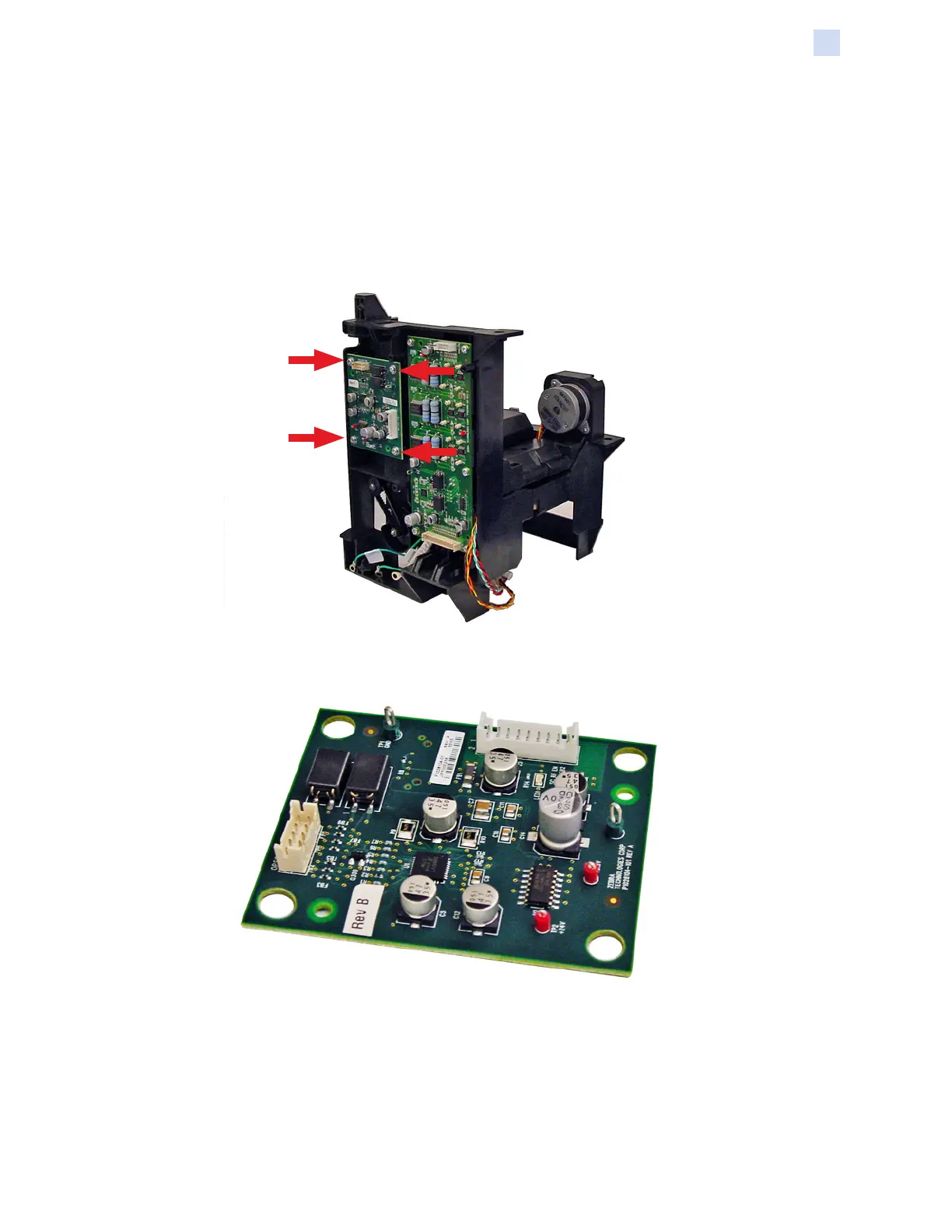

Step 3. With a TORX T10 driver, remove the four screws (SCR EJOT 30x8, 5.5 in-lb)
and washers holding the Smart Card Control PCBA in place.
Step 4. Remove the Smart Card Control PCBA, and set it aside.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
