208 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for Factory Installed Options
Procedures: Contact Station Module PCBA
Contact Station Module PCBA

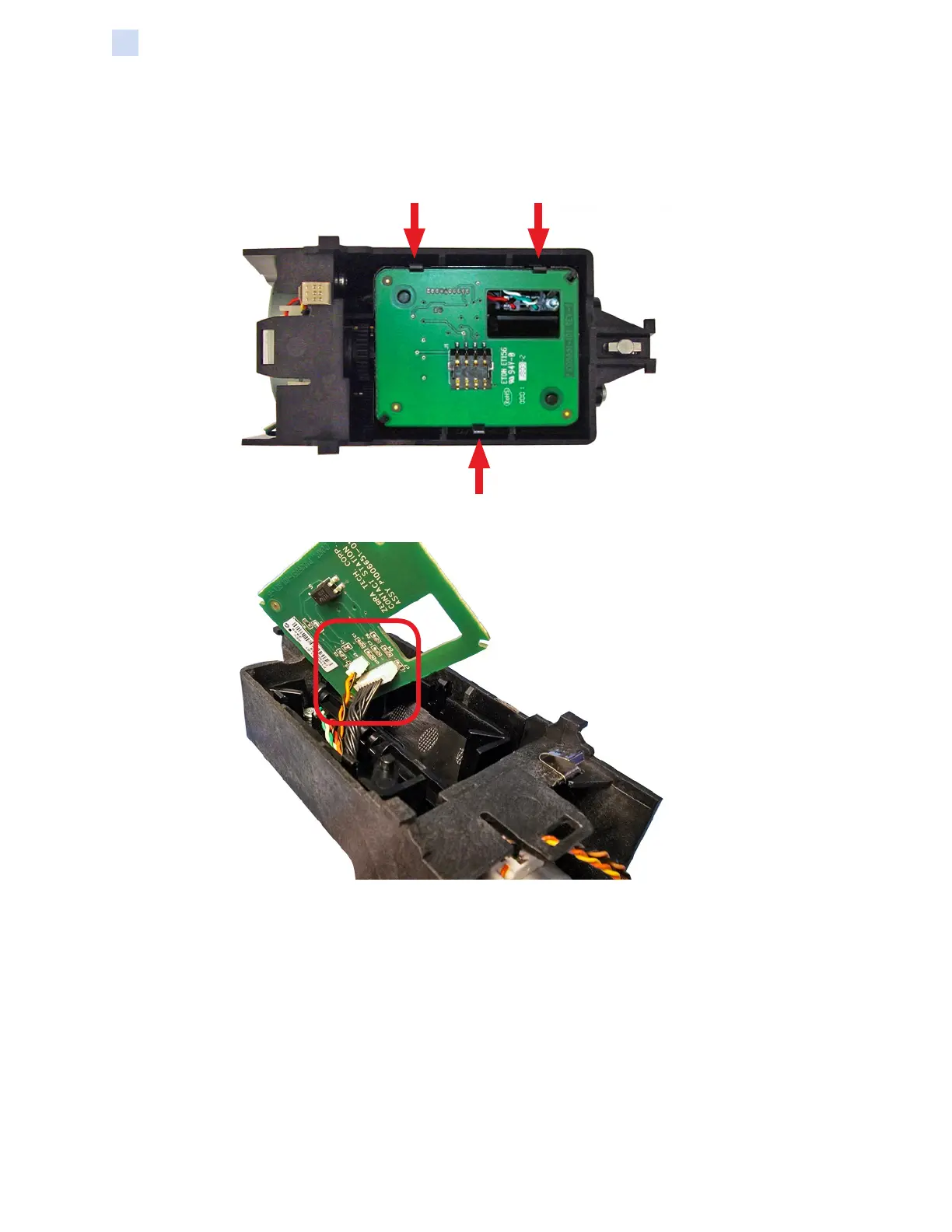

Step 1. With a small flat-blade screwdriver, release the three locking tabs (arrows
below) to free the contact station module PCBA.
Step 2. Carefully unplug the two connectors (circled below).
Step 3. Remove the contact station module PCBA, and set it aside.
To Next Page
