Zebra ZXP 7 series

304 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Left Side Panel
Left Side Panel
Removal

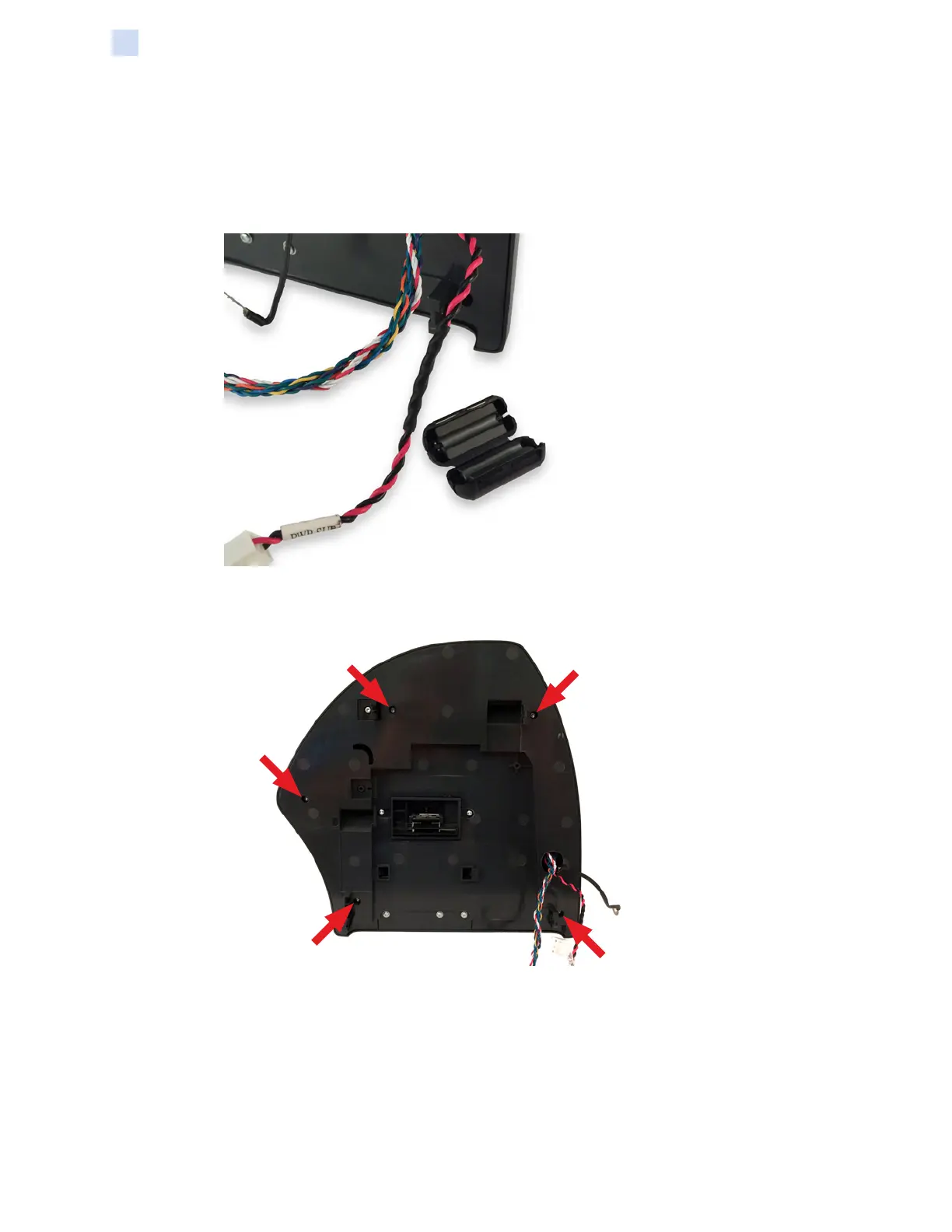

Step 1. Un-clip the ferrite and remove it from the power cable.
Step 2. Remove the five (5) screws securing the inside panel, and separate it from
the outside panel.
