Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 243
Replacement Procedures for the Laminator
Procedures: Halogen Bulbs
Halogen Bulbs
Removal

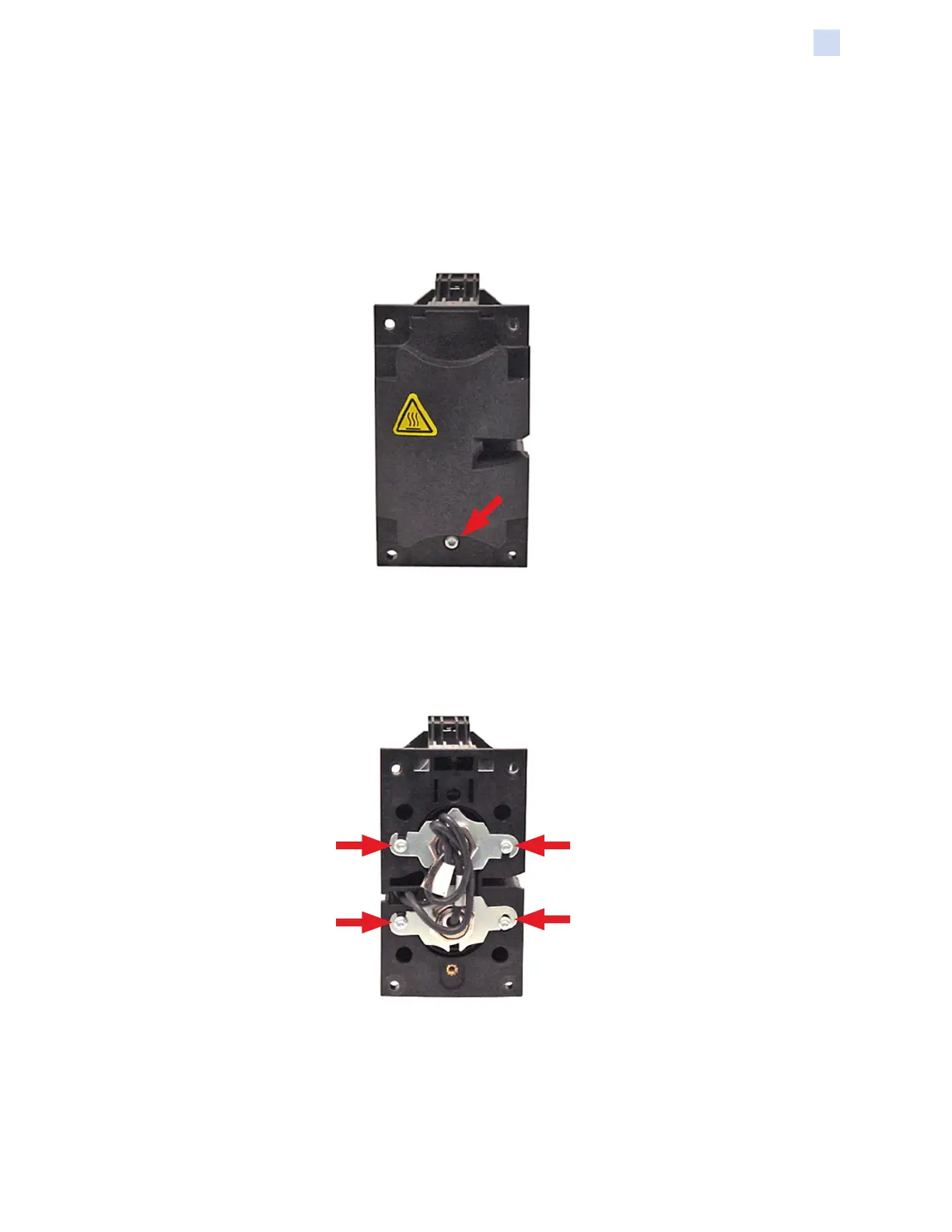

Step 1. With a TORX T10 driver, remove the screw (indicated below) holding the
Laminator Heater Cover in place.
Step 2. Remove the Laminator Heater Cover.
Step 3. Locate the Halogen Bulb to be replaced; then with a TORX T10 driver,
loosen the two screws holding the socket (and Halogen Bulb) in place.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
