P1036102-007 ZXP Series 7 Card Printer Service Manual 329
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Drive Assembly
Drive Assembly
Prior to starting this procedure, the left side panel must be removed. See
“Left Side Panel” on page 304 for details.
Removal

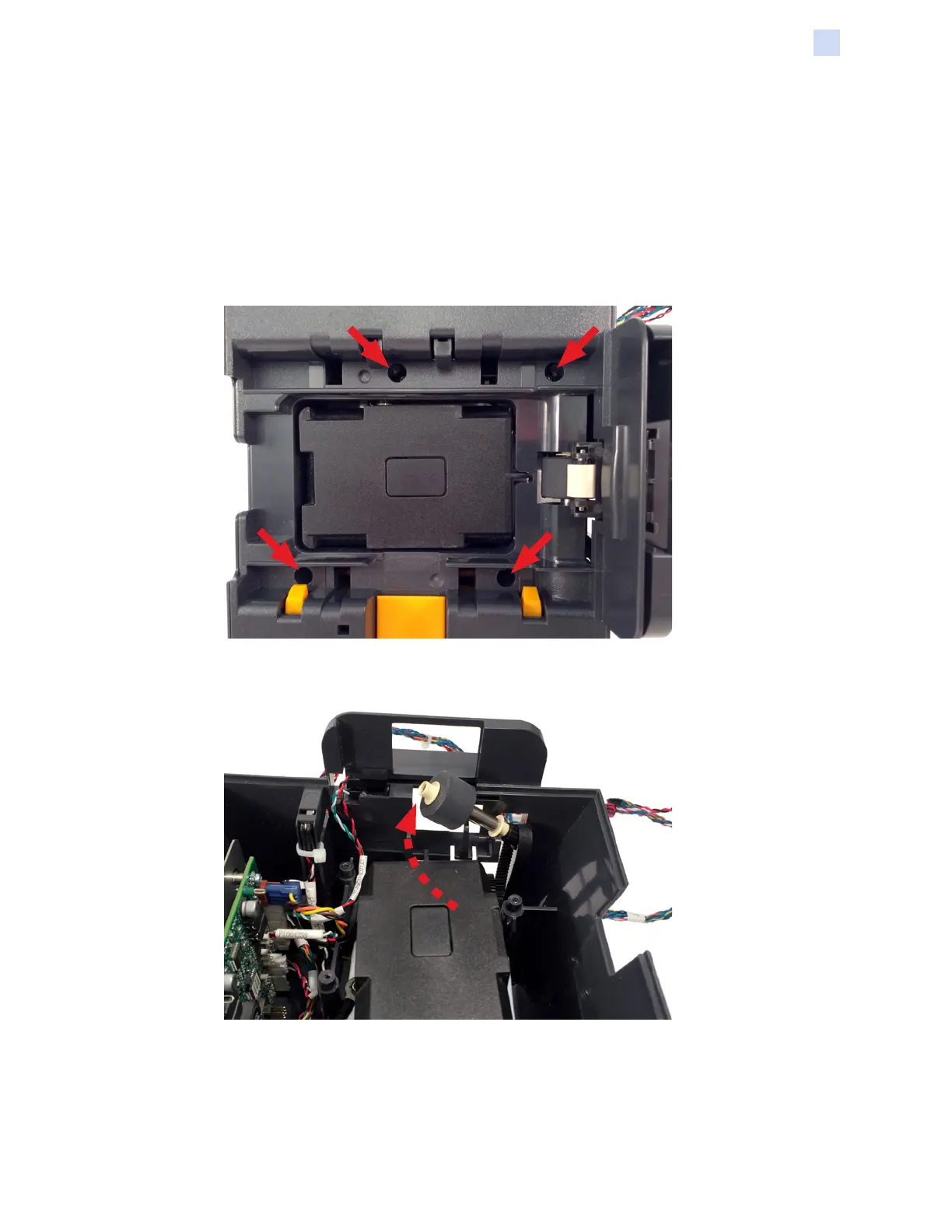

Step 1. Remove the four (4) screws securing the base cover and latch assembly to
the stacker assembly.
Step 2. Remove the platen roller and drive belt.
