68 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Reject Bin Bracket
Reject Bin Bracket

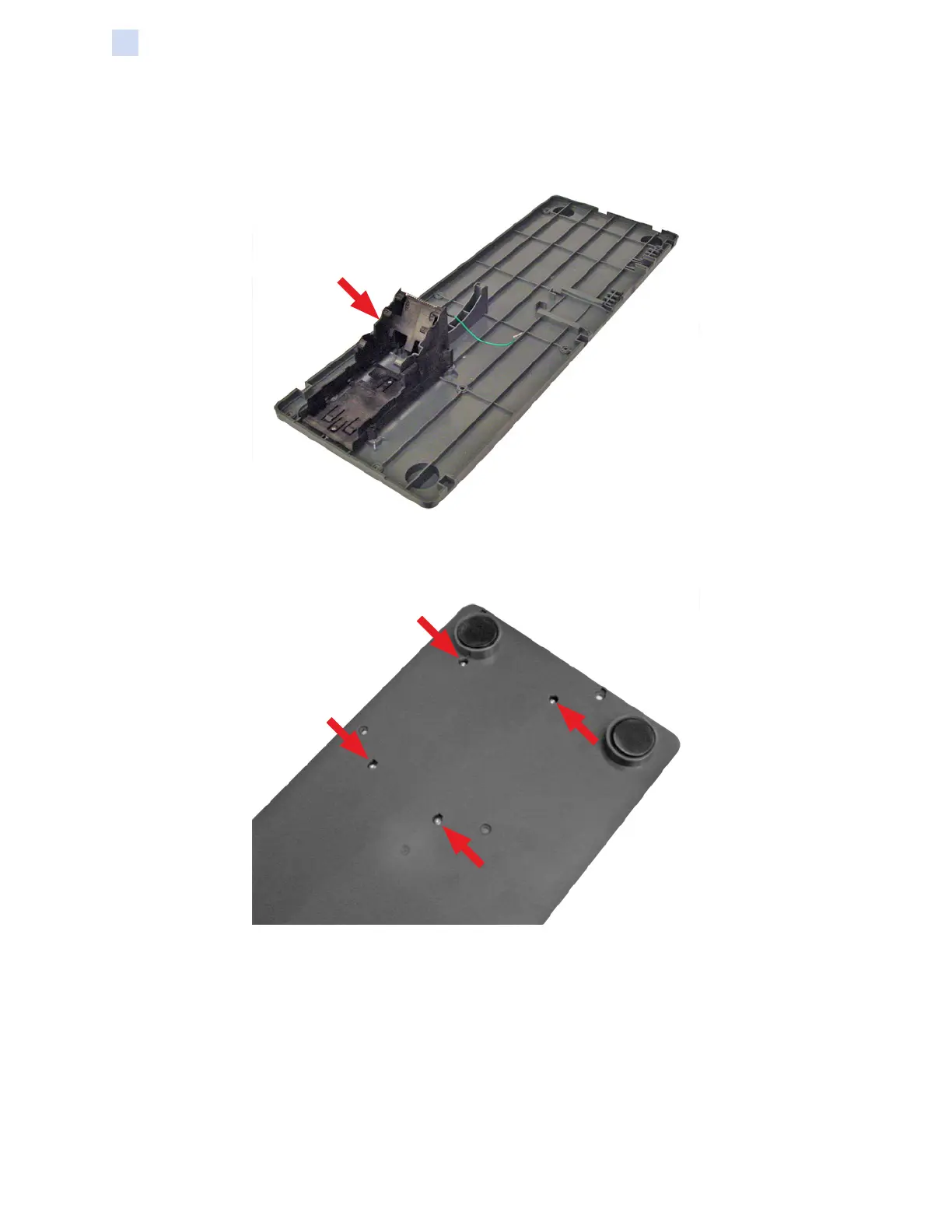

Step 1. Locate the Reject Bin Bracket (arrow below).
Step 2. With a TORX T10 driver, remove the four screws holding the Reject Bin
Bracket in place.
Step 3. Remove the Reject Bin Bracket, and set it aside.
