Zebra ZXP 7 series Service Manual

346 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Elevator

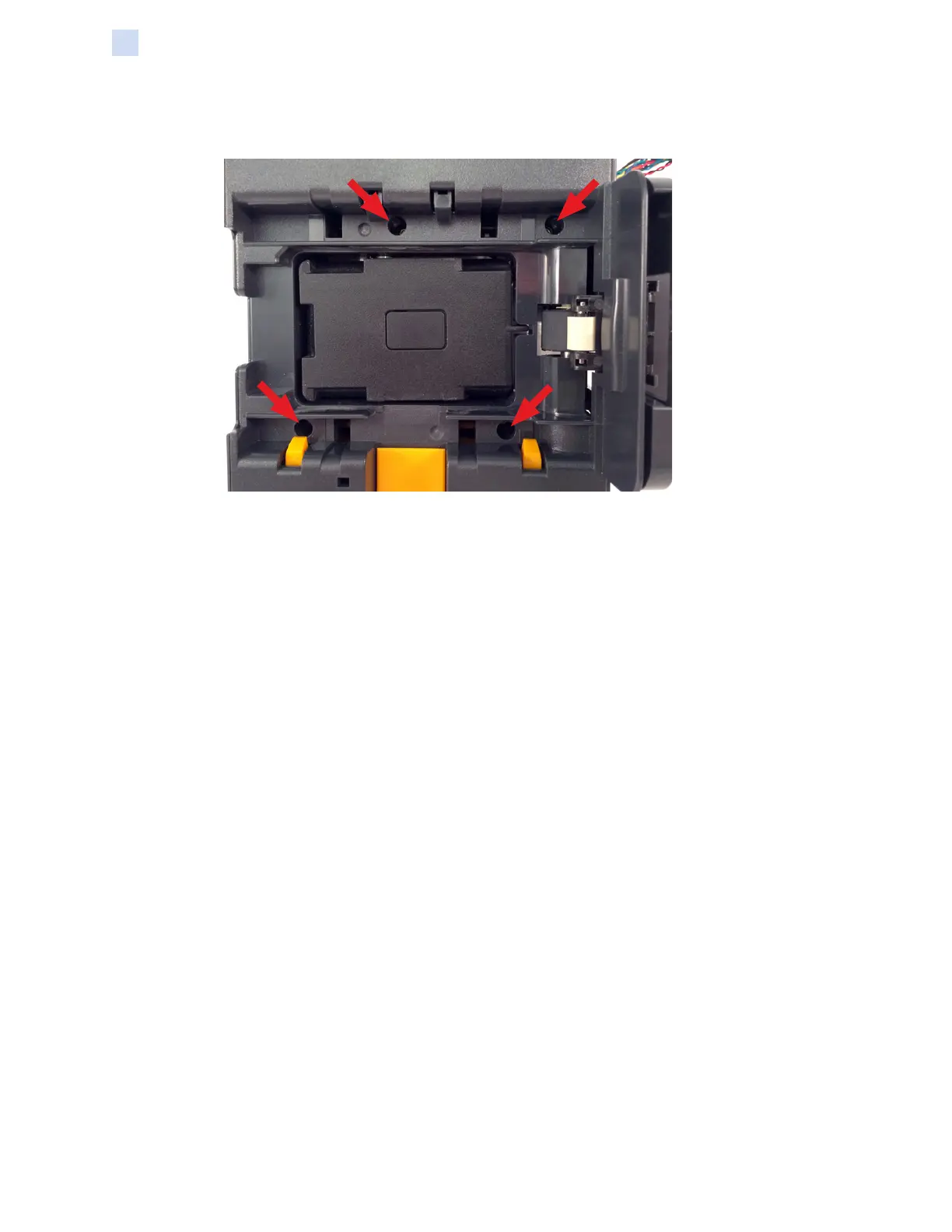

Step 9. Secure the base cover and latch assembly to the stacker assembly using the
four (4) screws.
Step 10. Reinstall the left side panel; see “Left Side Panel” on page 304.
Elevator Bushing
To replace the elevator bushing, follow the procedure for replacing the elevator; see
“Elevator” on page 339.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
