P1036102-007 ZXP Series 7 Card Printer Service Manual 345
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Elevator

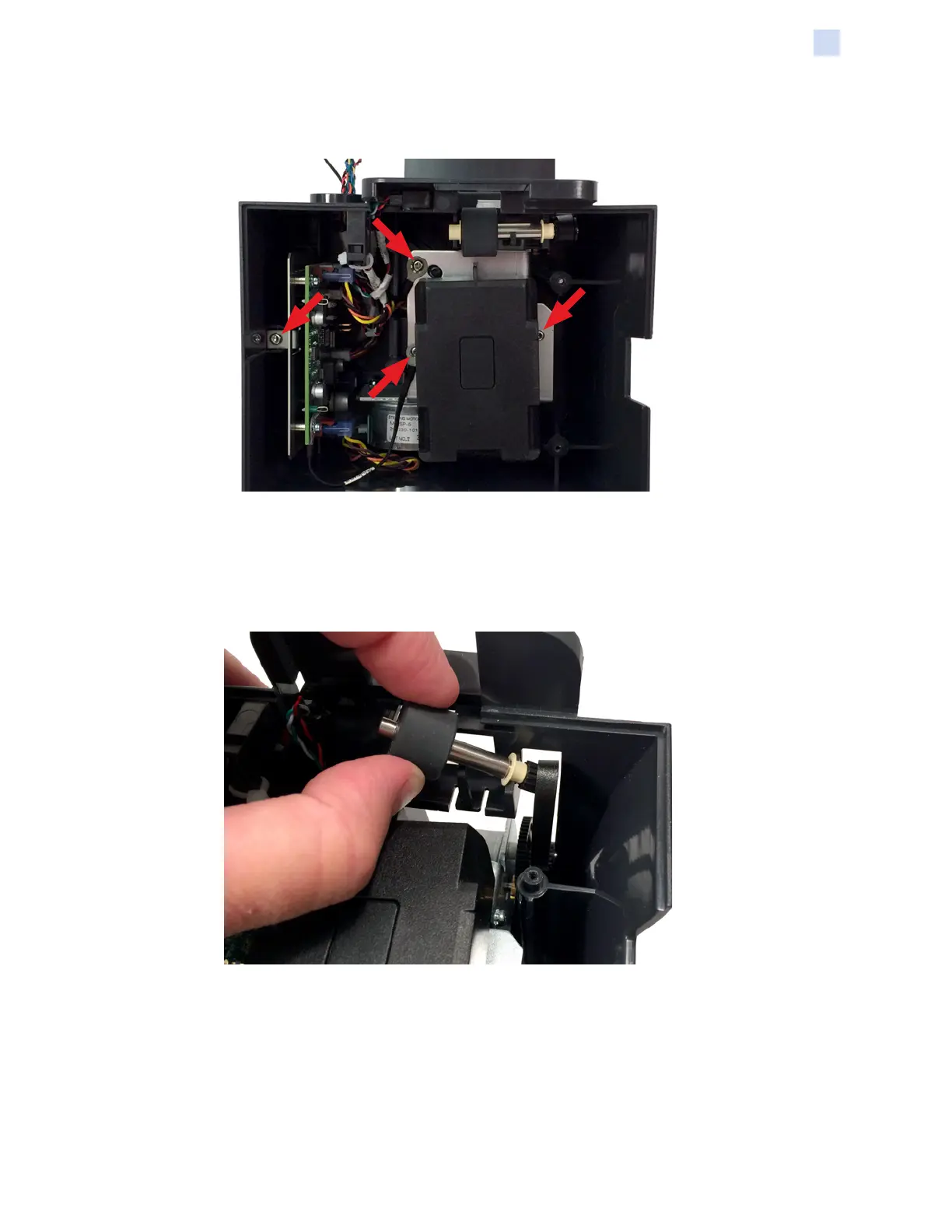

Step 6. Secure the PCBA to the base housing with a screw, and secure the ground
cables and drive motor assembly to the base housing with three (3) screws.
Step 7. From the inside of the stacker assembly, place the belt onto the drive motor
gear.
Step 8. While still holding the belt, insert the roller gear into the belt and place it into
the latching mechanism—make sure the nylon spacer is in place opposite
the roller.

Table of Contents

Other manuals for Zebra ZXP 7 series

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zebra ZXP 7 series and is the answer not in the manual?

Zebra ZXP 7 series Specifications

General IconGeneral
Print Resolution300 dpi
ConnectivityUSB 2.0, Ethernet
Memory64 MB standard
Print TechnologyDye-sublimation thermal transfer
Card Capacity200 cards input hopper, 100 cards output hopper
Card SizesCR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements100-240 VAC, 50-60 Hz
