284 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Laminate Ribbon Rollers (Top & Bottom)
Laminate Ribbon Rollers (Top & Bottom)

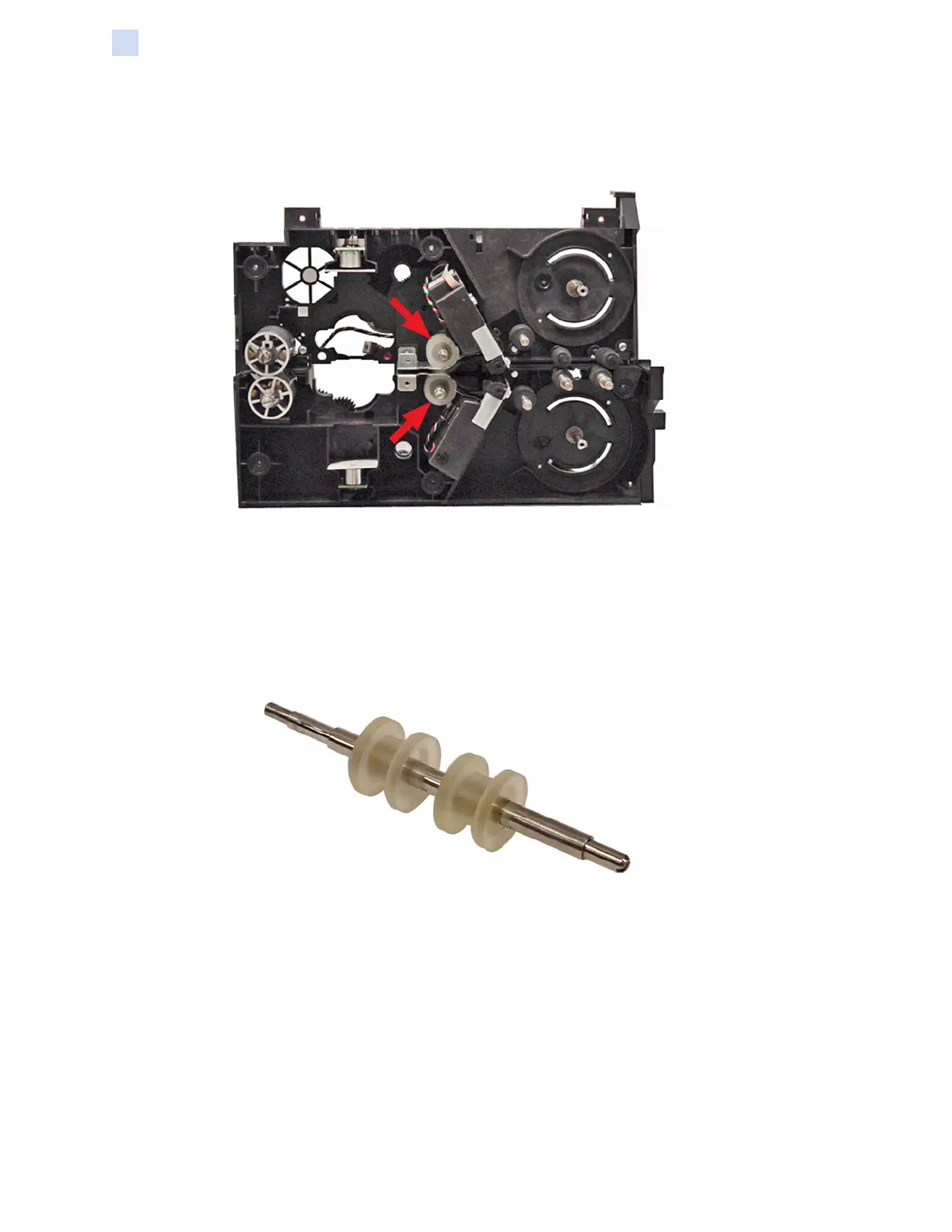

Step 1. Locate the Laminate Rib Roller (top and/or bottom); circled below.
Step 2. Remove the corresponding Cutter(s)—see “Cutters (Upper & Lower)” on
page 280.
Step 3. Remove the Laminate Rib Roller(s).
