Troubleshooting
OCP Test Cards
OCP Test Cards

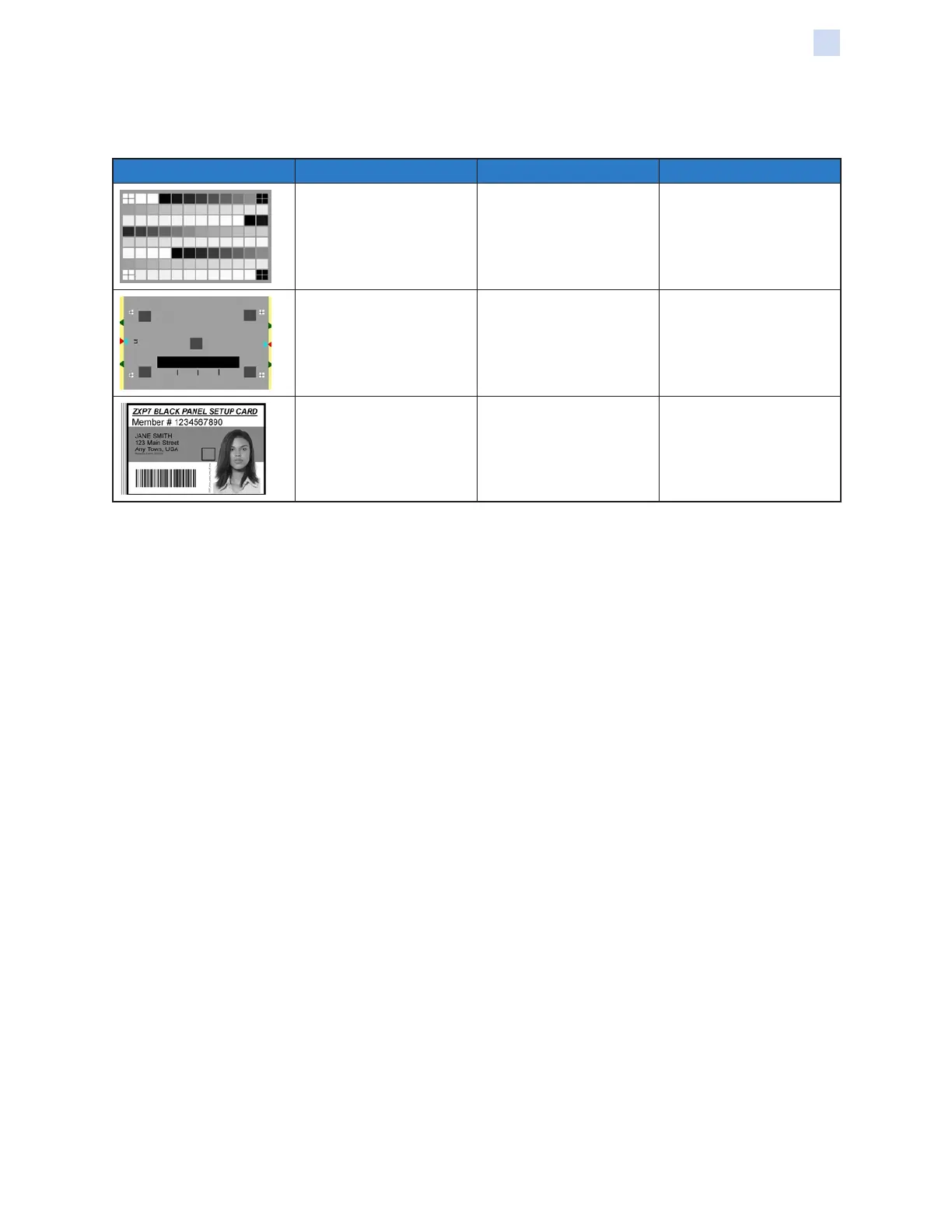

Image Title Description Use
GRADIENT BOXES
3 sets of light-to-dark
grayscale ramps
For factory use only.
DENSITY SETUP
Mid-gray and maximum
density elds on a at gray
surface
Used to measure mid
and max densities. Also
used to check the left/right
offsets or the centering of
the image on the card.
MONOCHROME ONLY Barcode and text
Used to verify
monochrome print
capability.
Also used to check the left/right osets or the centering of the image on the card.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
