Replacement Procedures for the Laminator
Procedures: Door Sensor Cable Assembly
Door Sensor Cable Assembly

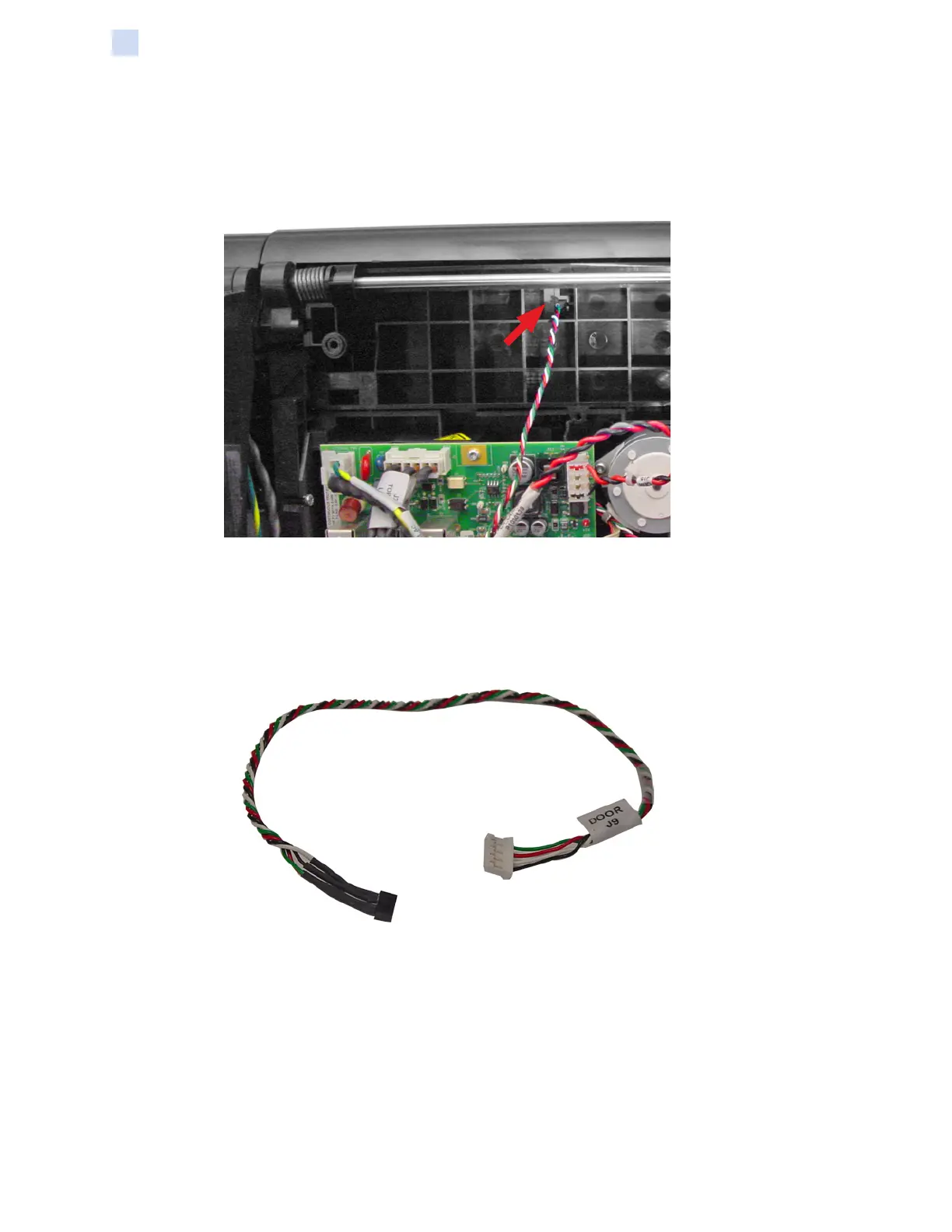

Step 1. With a small Flat-blade screwdriver, release the locking tab (indicated below)
to free the Door Sensor.
Step 2. Cut the associated cable ties, disconnect J9 from the Laminator Controller
PCBA, and remove the Door Sensor Cable Assembly.
Step 3. Set the Door Sensor Cable Assembly aside.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
