230 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Latch Assembly
Latch Assembly

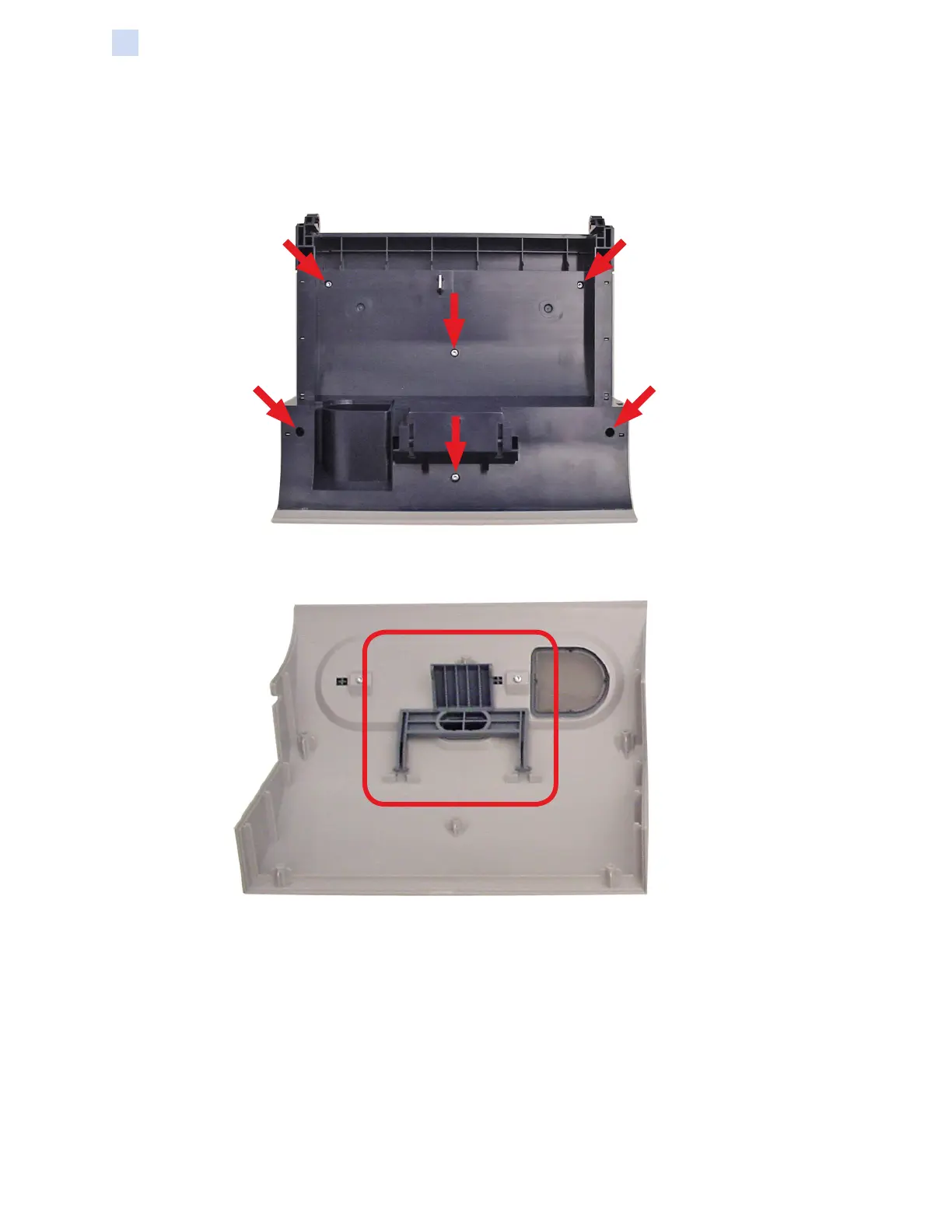

Step 1. With a TORX T10 driver, remove the six screws holding the Inner Cover to
the Door.
Step 2. Separate the Inner Cover and the Door (they snap together).
Step 3. Remove the Button (circled above), and set it aside.
To Next Page
