Replacement Procedures for the Laminator
Procedures: Card Entry Sensor Cable Assembly
Card Entry Sensor Cable Assembly

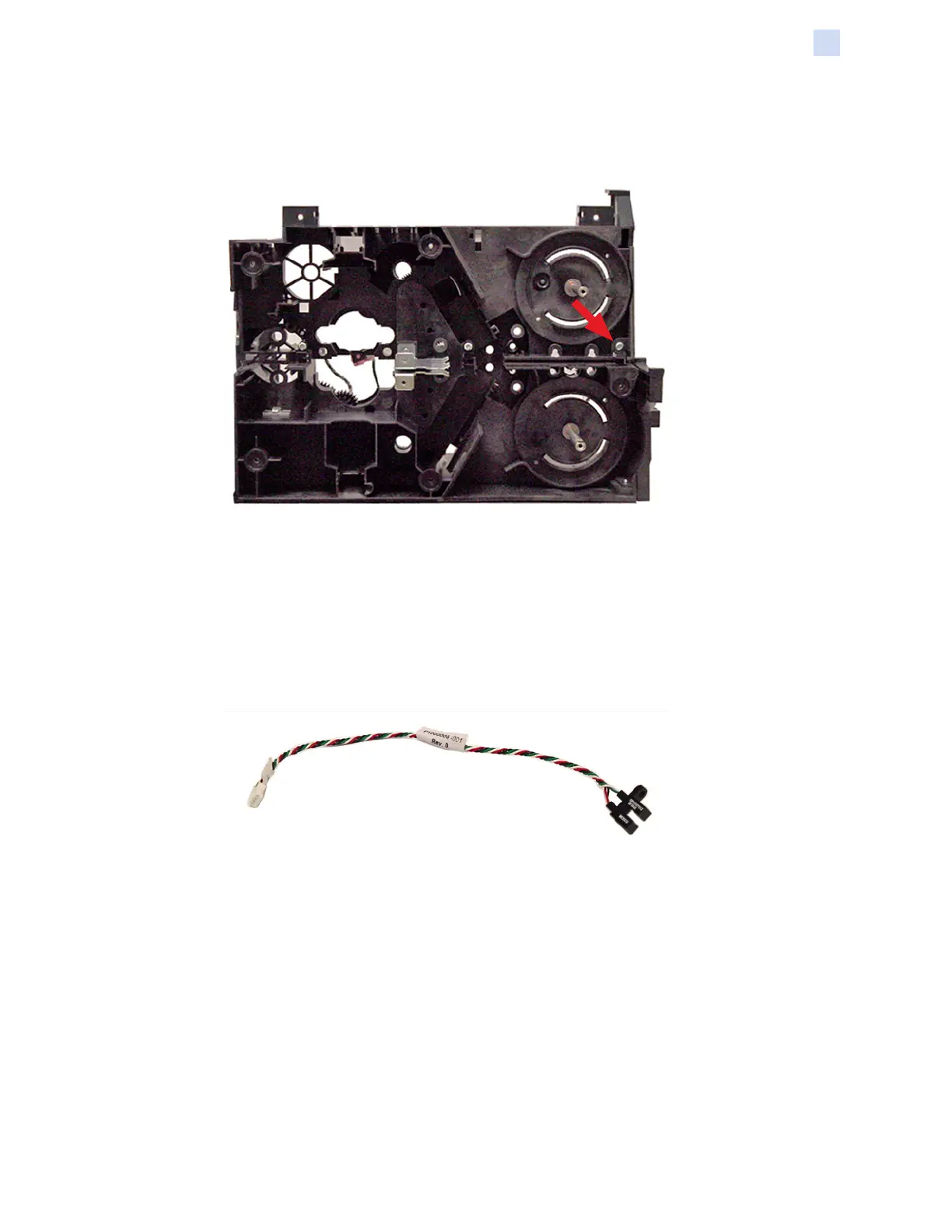

Step 1. Locate the Card Entry Sensor Cable Assembly.
Step 2. With a TORX T10 driver, remove the screw holding the Sensor in place;
indicated above.
Step 3. Carefully slide the Sensor and Cable straight out of the Laminator.
