286 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Card Laminator Sensor Cable Assembly
Card Laminator Sensor Cable Assembly

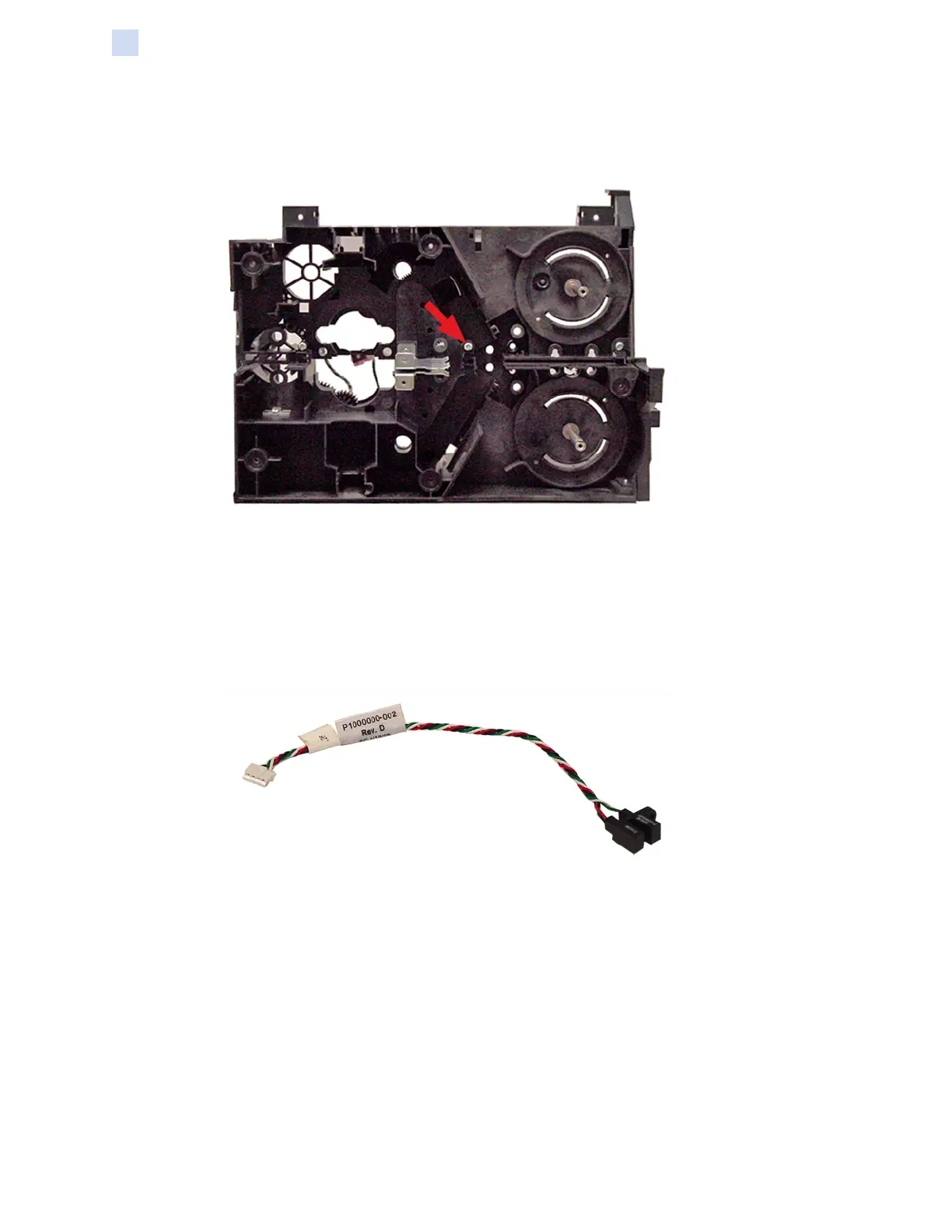

Step 1. Locate the Card Laminator Sensor Cable Assembly.
Step 2. With a TORX T10 driver, remove the screw holding the Sensor in place;
indicated above.
Step 3. Carefully slide the Sensor and Cable straight out of the Laminator.
To Next Page
