Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 303
Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper

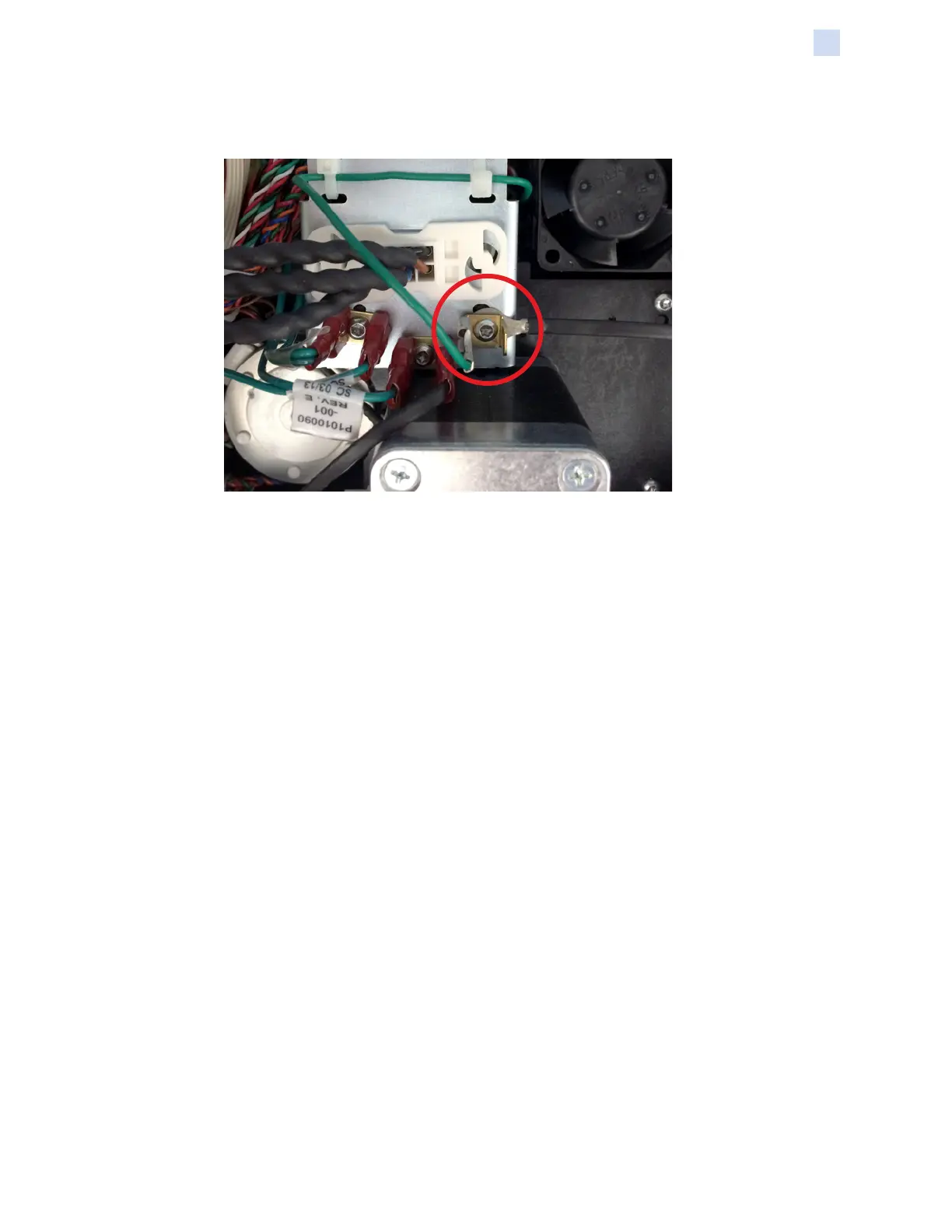

Step 5. Reconnect the reject bin ground wire to the ground post and install the
bottom cover using the eight (8) screws.
Step 6. Install the printer rear cover with three (3) screws.
Step 7. Install the laminator rear cover with two (2) screws.
Step 8. Replace the ribbon drawer.
Step 9. Replace the reject bin.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
