302 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper

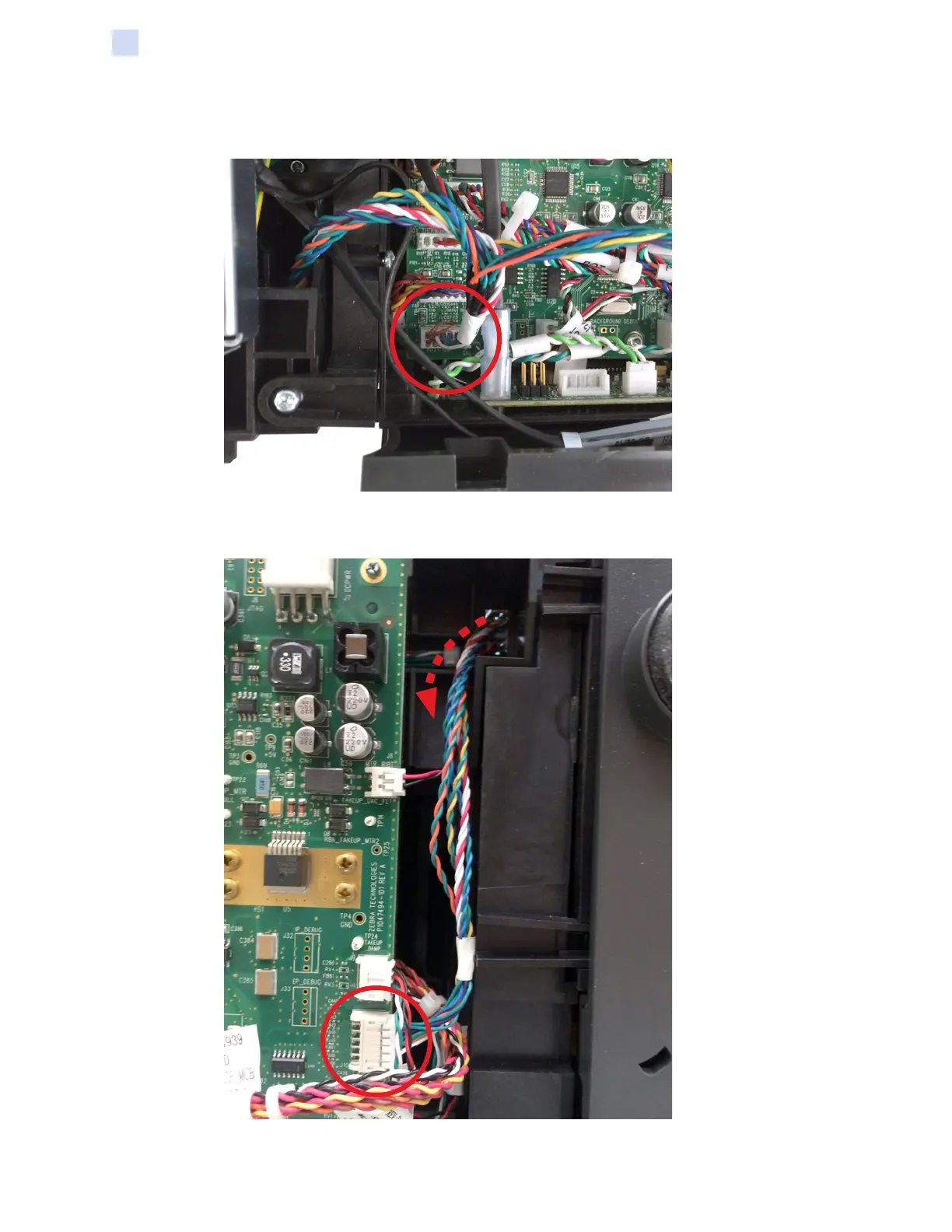

Step 3. Connect the high-capacity output hopper control cable to J14 on the
laminator PCBA.
Step 4. Route the high-capacity output hopper control cable through the access
hole in the printer frame and connect it to J10 on the printer PCBA.
