Zebra ZXP 7 series

P1036102-007 ZXP Series 7 Card Printer Service Manual 301
Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper

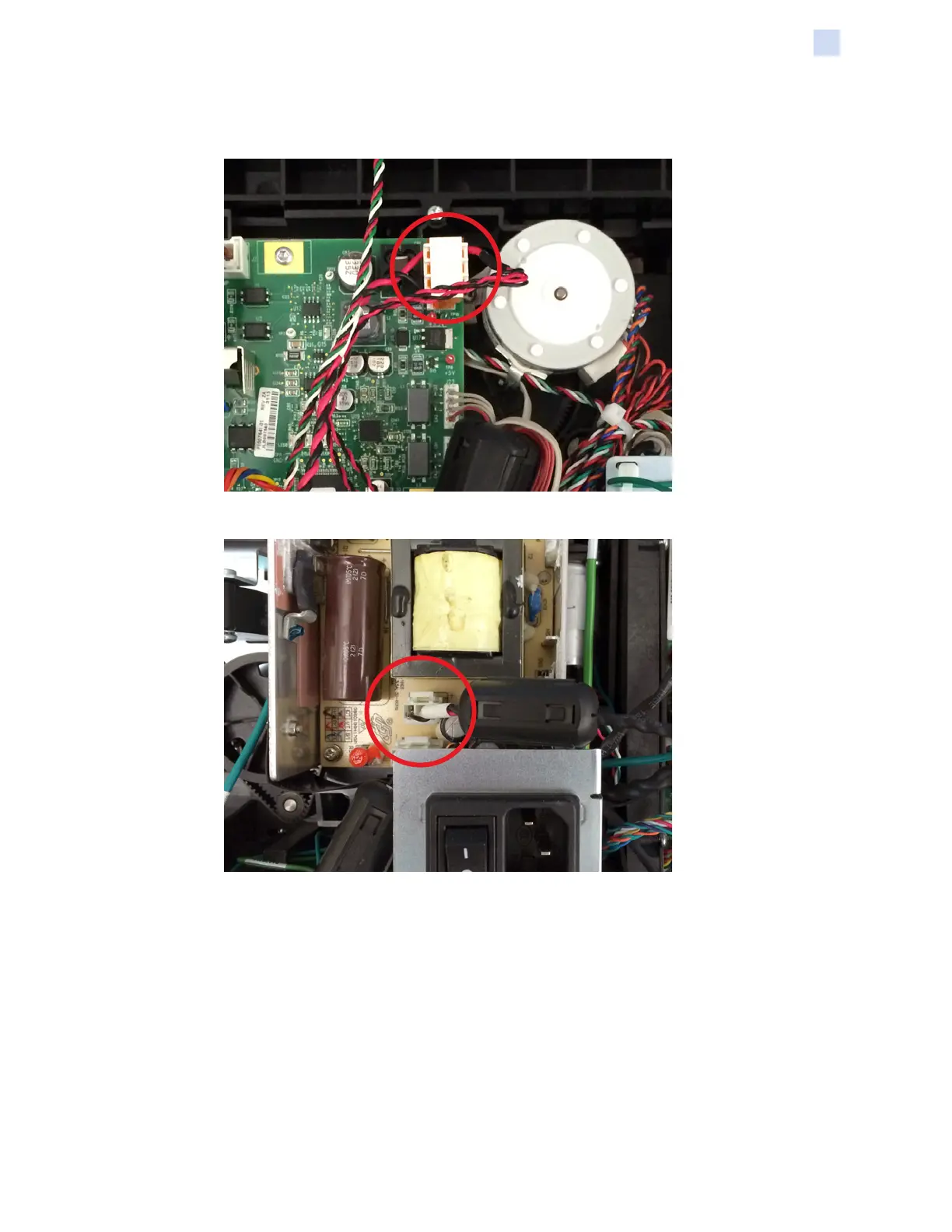

Step 2. Connect the high-capacity output hopper power supply cable to J15 on the
laminator PCBA...
...and CN3 pn the printer power supply module. Attach the ferrite to the power cable.
