Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 247
Replacement Procedures for the Laminator
Procedures: 24V Heater Fans
Intake Fan (Lower)
Step 1. With a TORX T10 driver, remove the two screws holding the Intake Fan

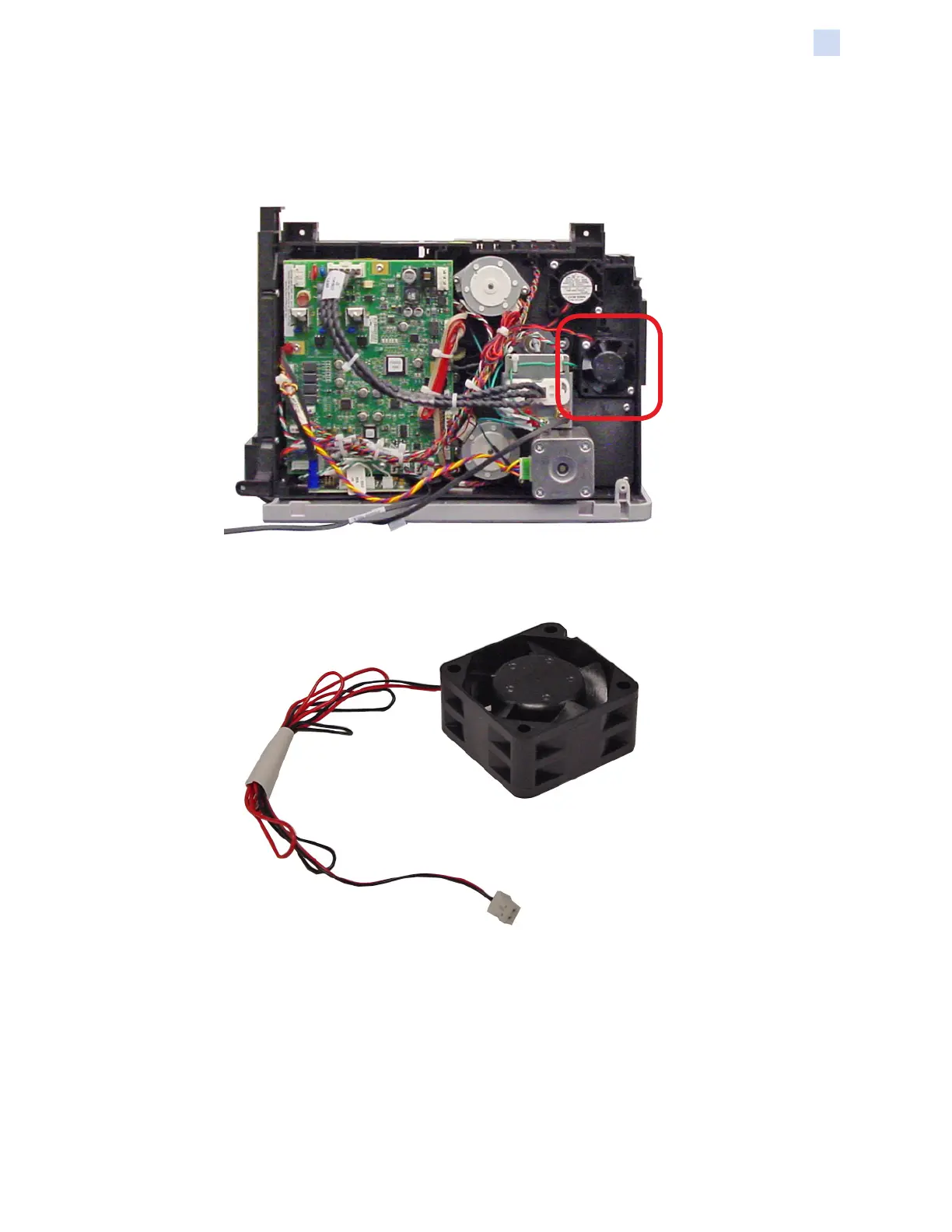

(circled below) in place. Note the orientation of the fan.
Step 2. Cut the associated cable ties, disconnect the fan plug from the Laminator
Controller PCBA (J3), and remove the Intake Fan.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
