Zebra ZXP 7 series Service Manual

Name: Zebra ZXP 7 series
Brand: Zebra
Rating: 4 (1 reviews)

384 pages

To Next Page

To Previous Page

P1036102-007 ZXP Series 7 Card Printer Service Manual 249

Replacement Procedures for the Laminator

Procedures: Motor and Plate Assembly

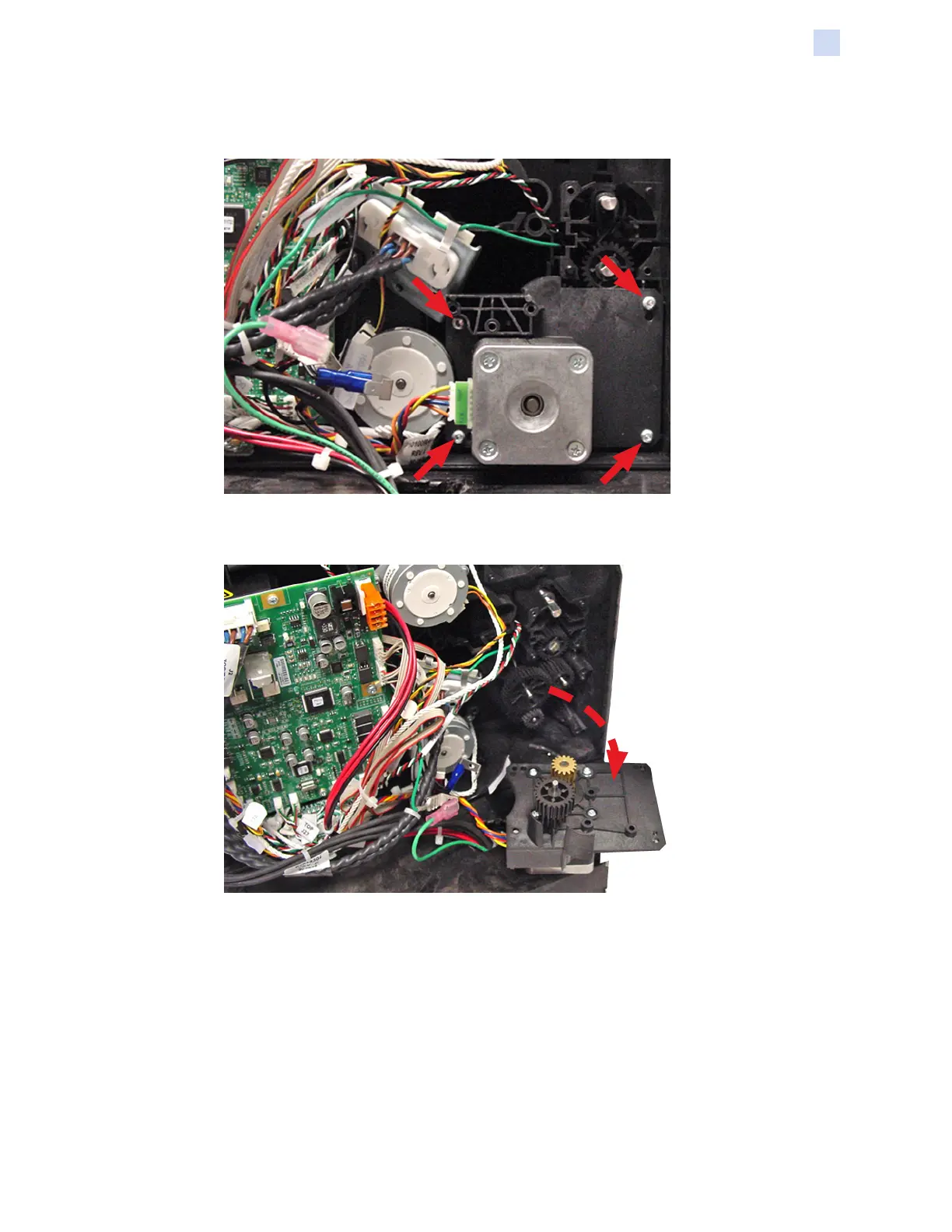

Step 3. With a TORX T10 driver, remove the four screws (circled below) holding the

Motor and Plate Assembly in place.

Step 4. Carefully free the Motor and Plate Assembly from the Frame. Ensure that all

gears and shafts remain in place.

Other manuals for Zebra ZXP 7 series

Need help?

Do you have a question about the Zebra ZXP 7 series and is the answer not in the manual?

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
