226 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Lower Door

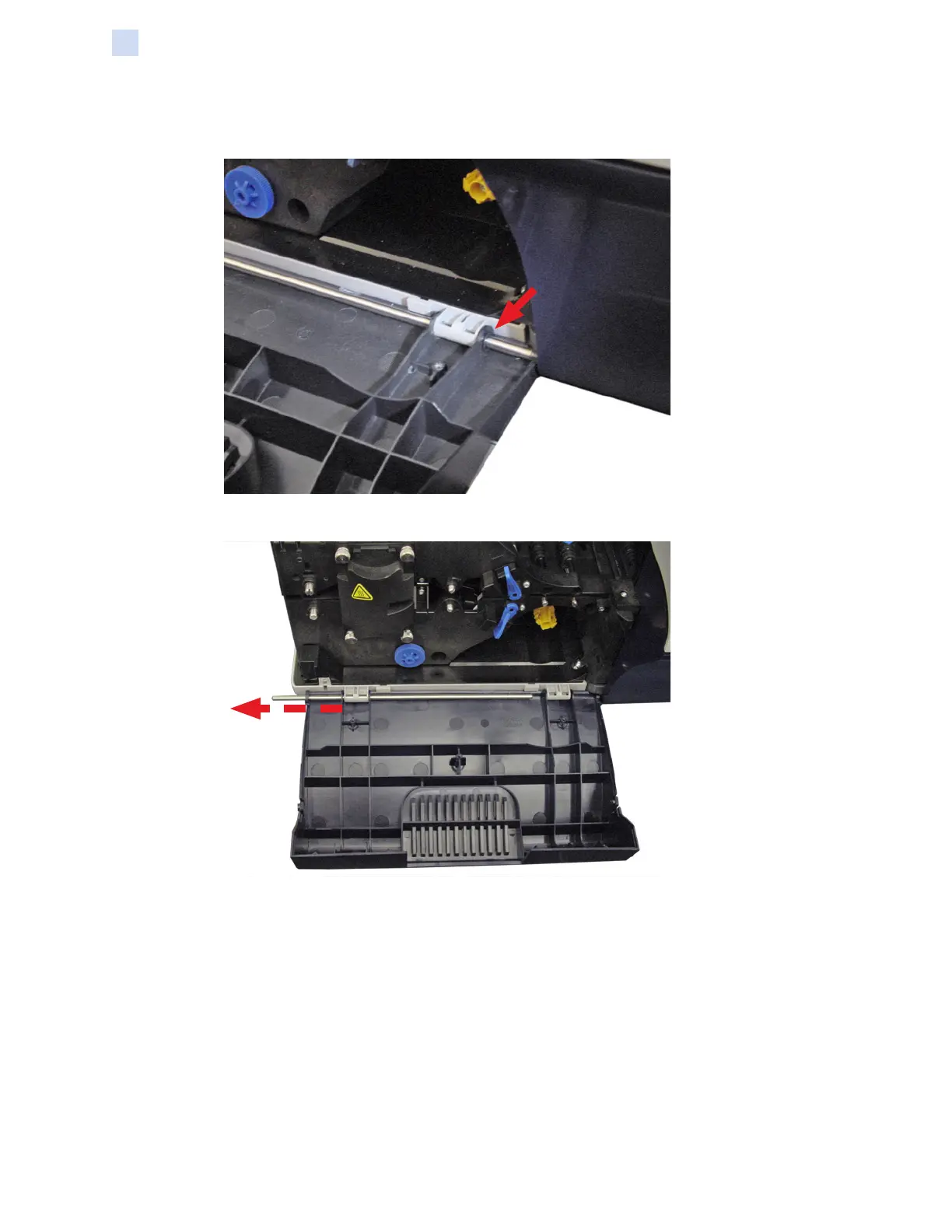

Step 3. With a small Flat-blade screwdriver, carefully remove the clip holding the
lower hinge pin in place.
Step 4. Slide the Hinge Pin out of the Laminator.
Step 5. Set the Lower Door aside.
