P1036102-007 ZXP Series 7 Card Printer Service Manual 139

Replacement Procedures for the Printer

Procedures: Feeder/Flipper/Options Assembly

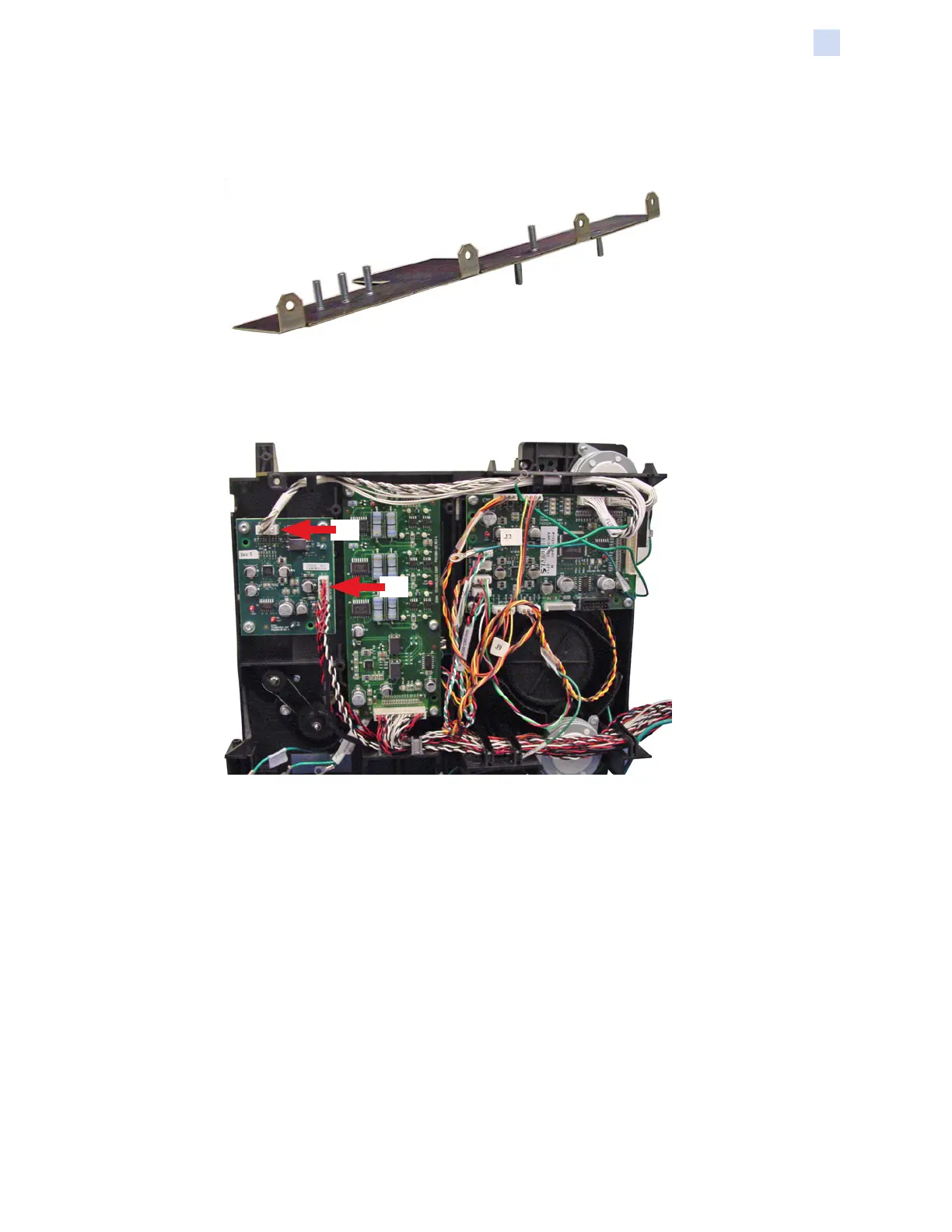

Step 5. Remove the Print Engine Ground Plate, and set it aside. Note that the back

edge of the Print Engine Ground Plate is tightly held under plastic clips; use

moderate pressure to free it.

Step 6. Disconnect connectors J1 and J2 from OPSC MODULE PCBA (arrows

below).
