140 ZXP Series 7 Card Printer Service Manual P1036102-007

Replacement Procedures for the Printer

Procedures: Feeder/Flipper/Options Assembly

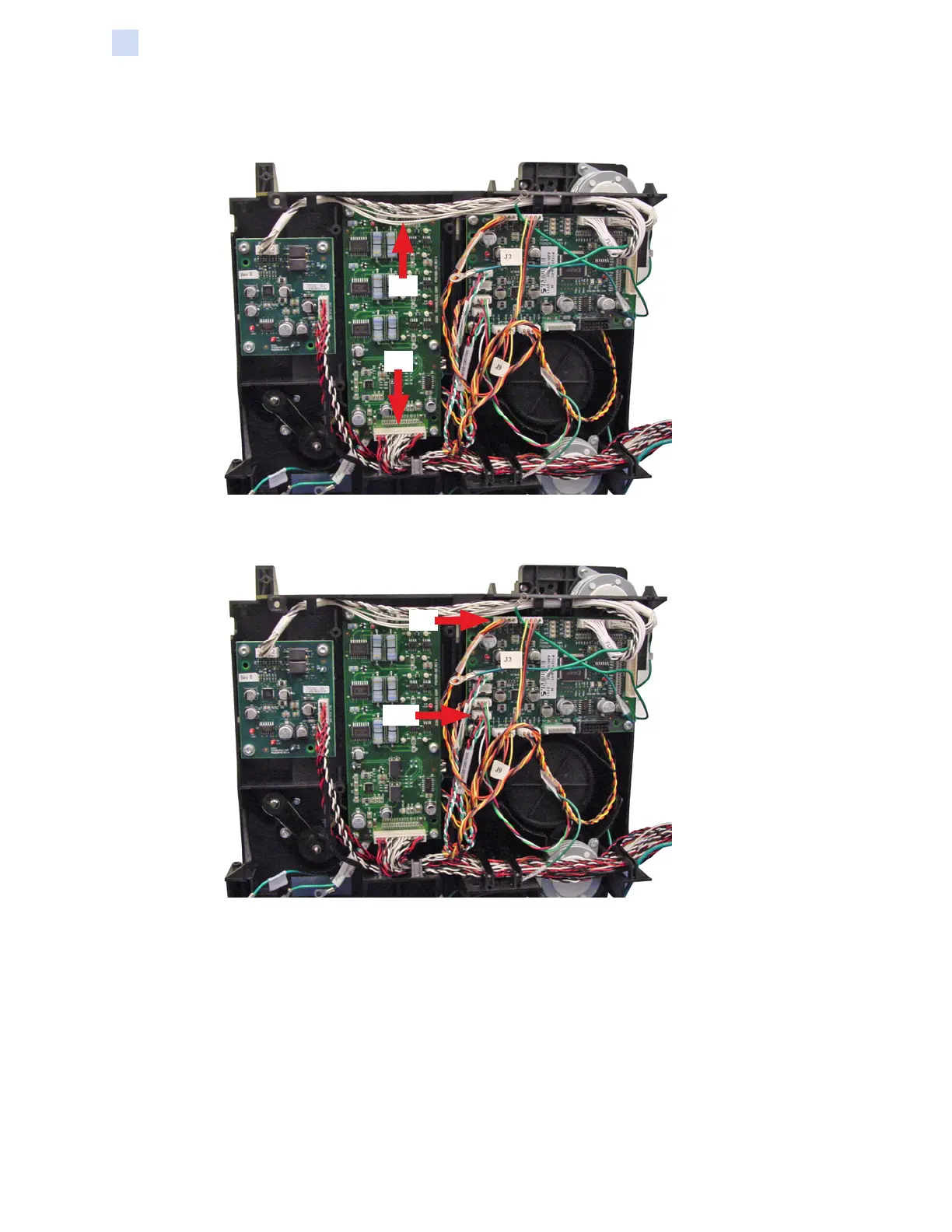

Step 7. Disconnect connectors J1 and J2 from OPMAG MODULE PCBA (arrows

below).

Step 8. Disconnect connectors J1 and J10 from FLIPPER MODULE PCBA (arrows

below).

J10

Step 9. Free all the cables.
