P1036102-007 ZXP Series 7 Card Printer Service Manual 141
Replacement Procedures for the Printer
Procedures: Feeder/Flipper/Options Assembly

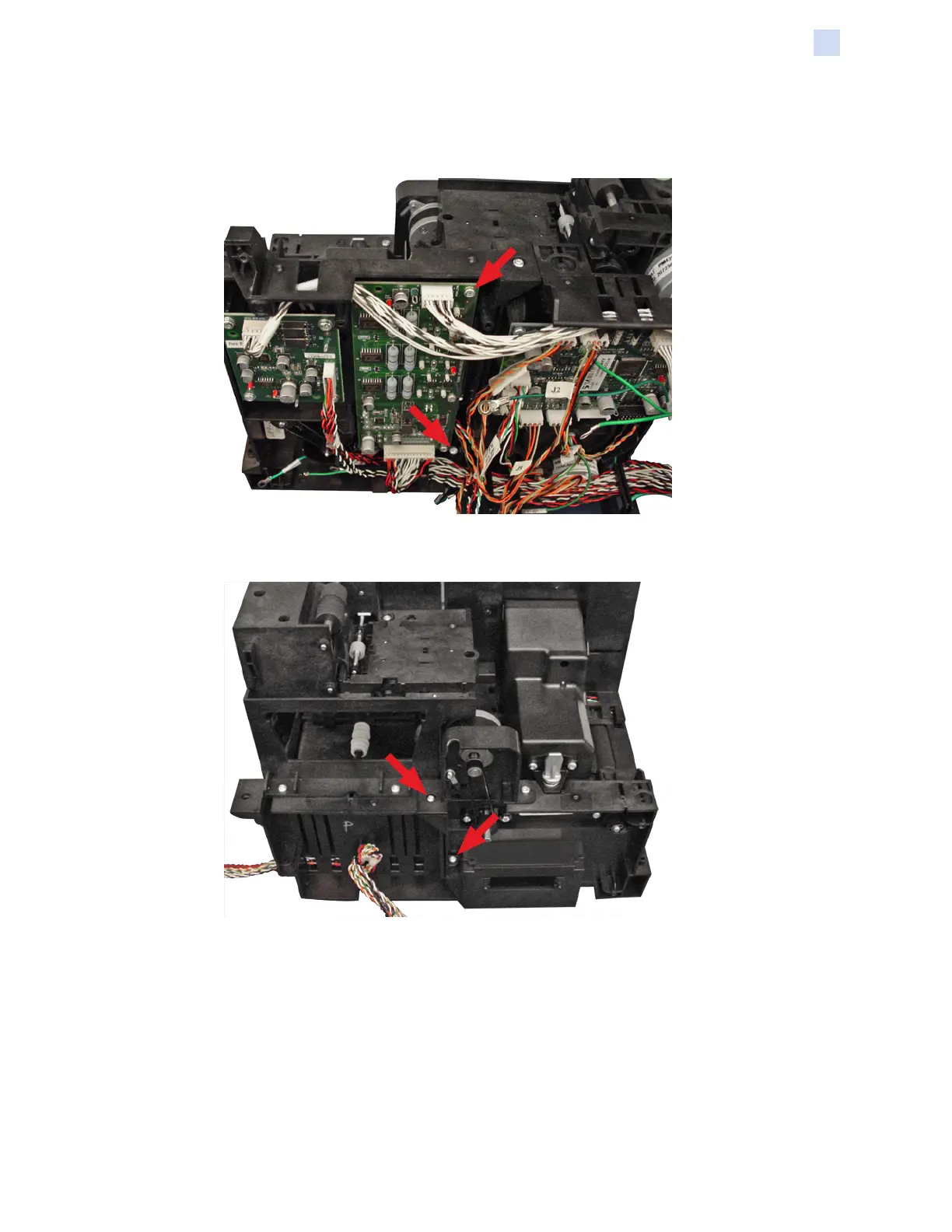

Step 10. From the back of the Printer: With a TORX T10 driver, remove the two screws
holding the Feeder/Flipper Module and the Options Module together. Use
an 8-inch tapered bit TORX T10 driver for the lower screw.
Step 11. From the front of the Printer: With a TORX T10 driver, remove the two screws
holding the Feeder/Flipper Module and the Options Module together.
Step 12. Lift and separate the Feeder/Flipper Module from the Options Module.
To Next Page
