136 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Print Engine

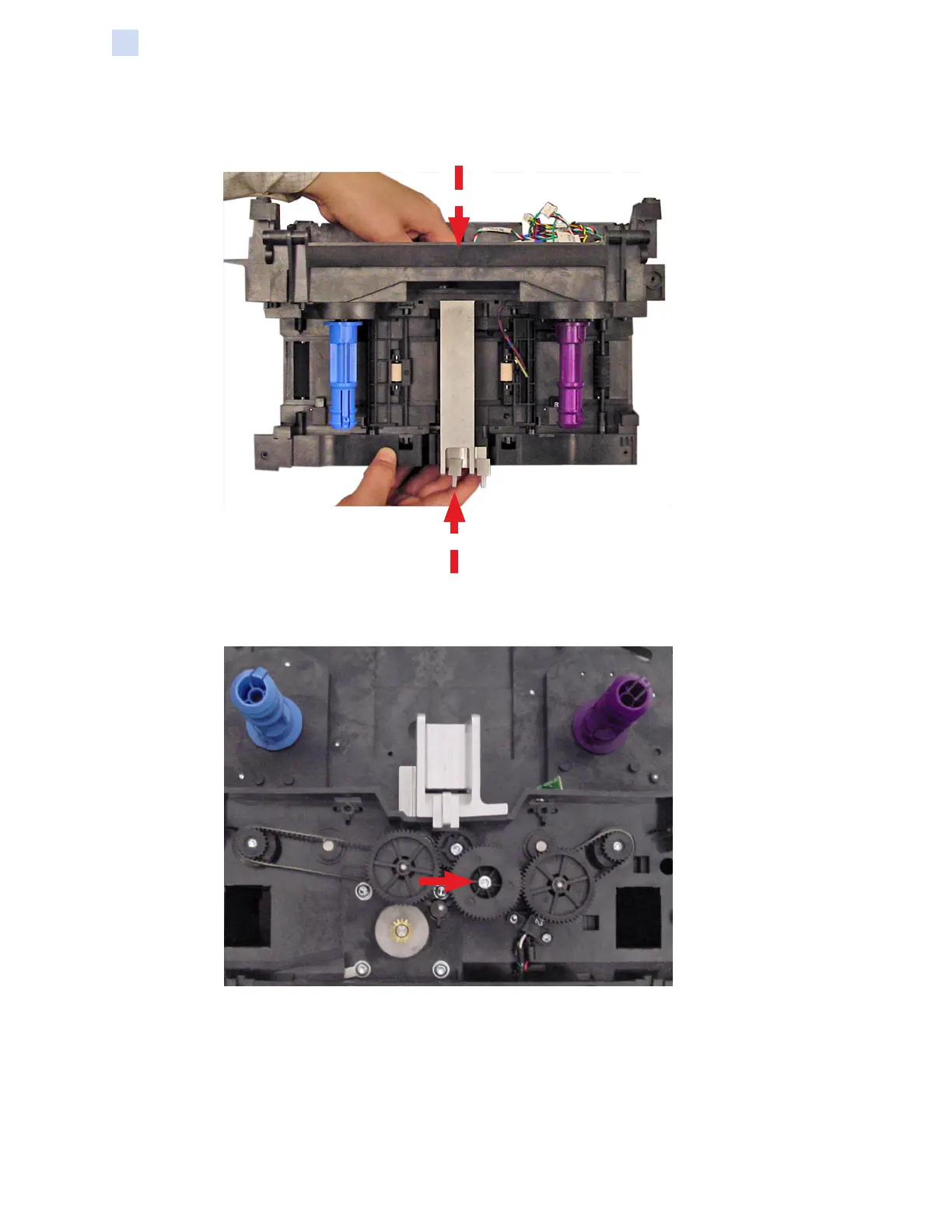

Step 7. Press the cam shaft from the rear of the printer and the gear from the front
of the printer until the gear slides into place.
Step 8. With a TORX T10 driver, install the screw holding the gear in place—see
arrow below
Step 9. Remove the Print Head Cam Sync Fixture.
Step 10. Continue reassembly.
