Replacement Procedures for the Printer
Procedures: Print Engine

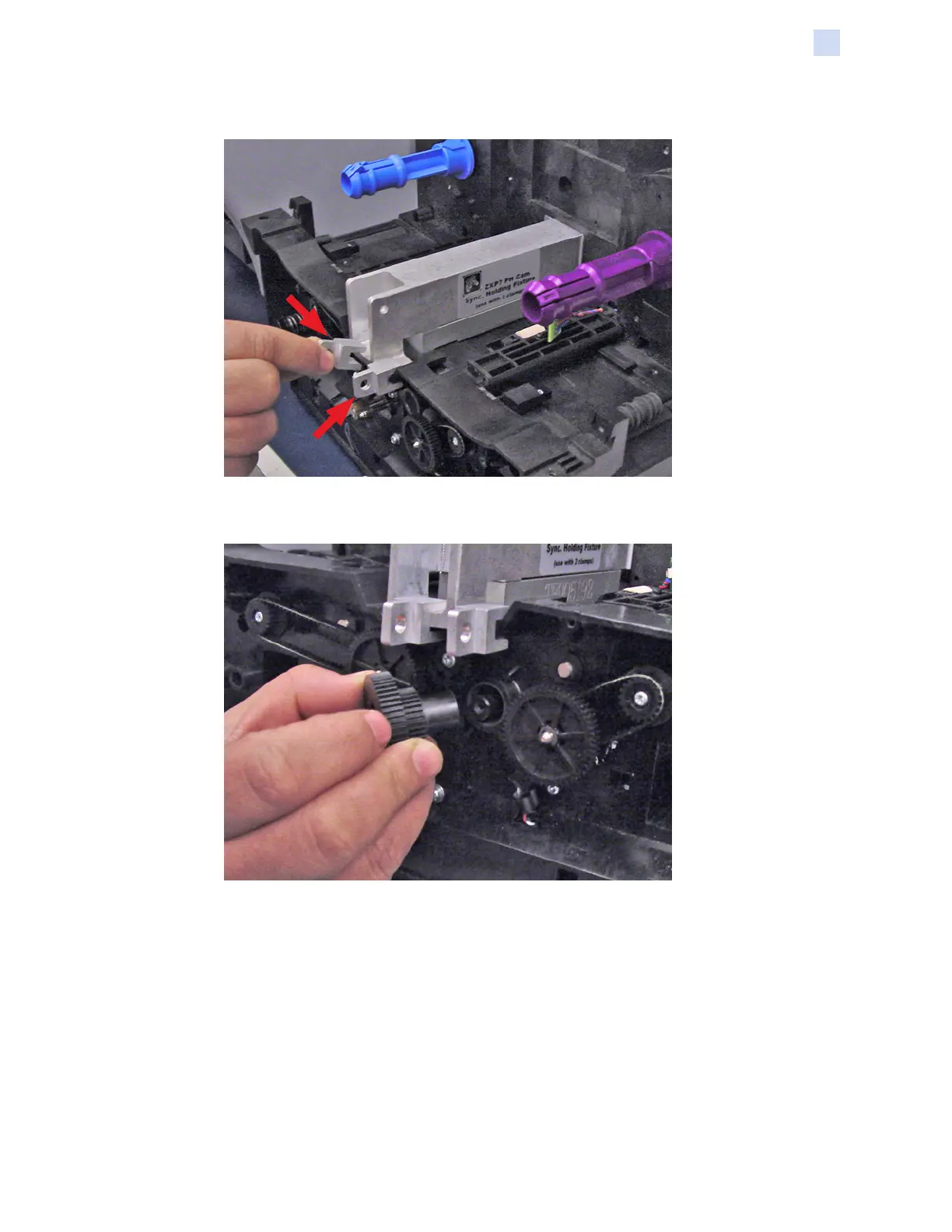

Step 5. Lock both fixtures in place with the two clips (arrows below).
Step 6. Rotate the gear until the D-notch is aligned with the flat on the shaft. Partially
slide the gear into place.
