Zebra ZXP 7 series Service Manual

134 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Print Engine

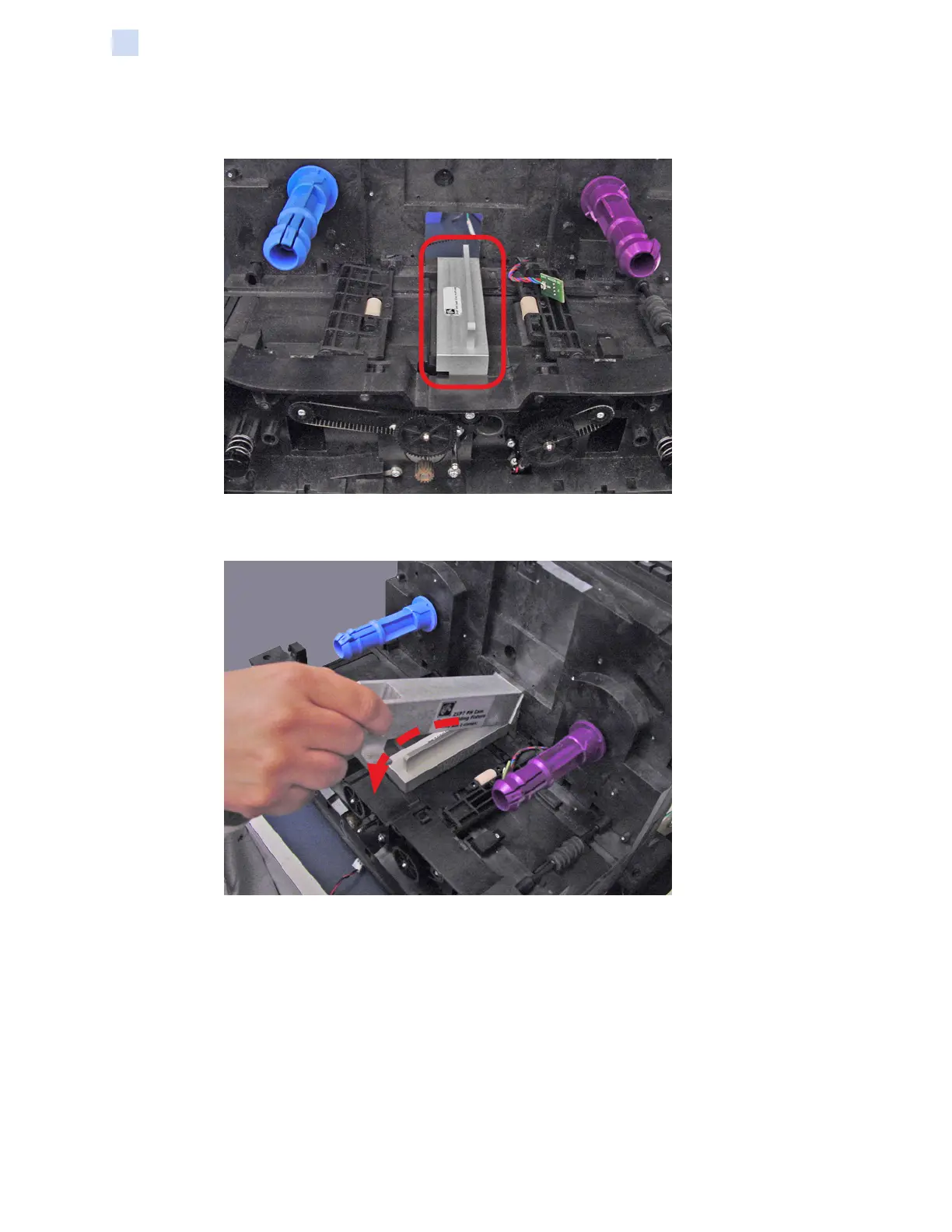

Step 3. Install the Printhead Lift Cam Fixture. The orientation is critical as shown
below.
Step 4. Install the Printhead Cam Sync Holding Fixture (set the lip of the fixture into
the access hole, pivot the fixture down, and then pull the fixture to anchor it).

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
