Zebra ZXP 7 series Service Manual

252 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Laminator Controller PCBA

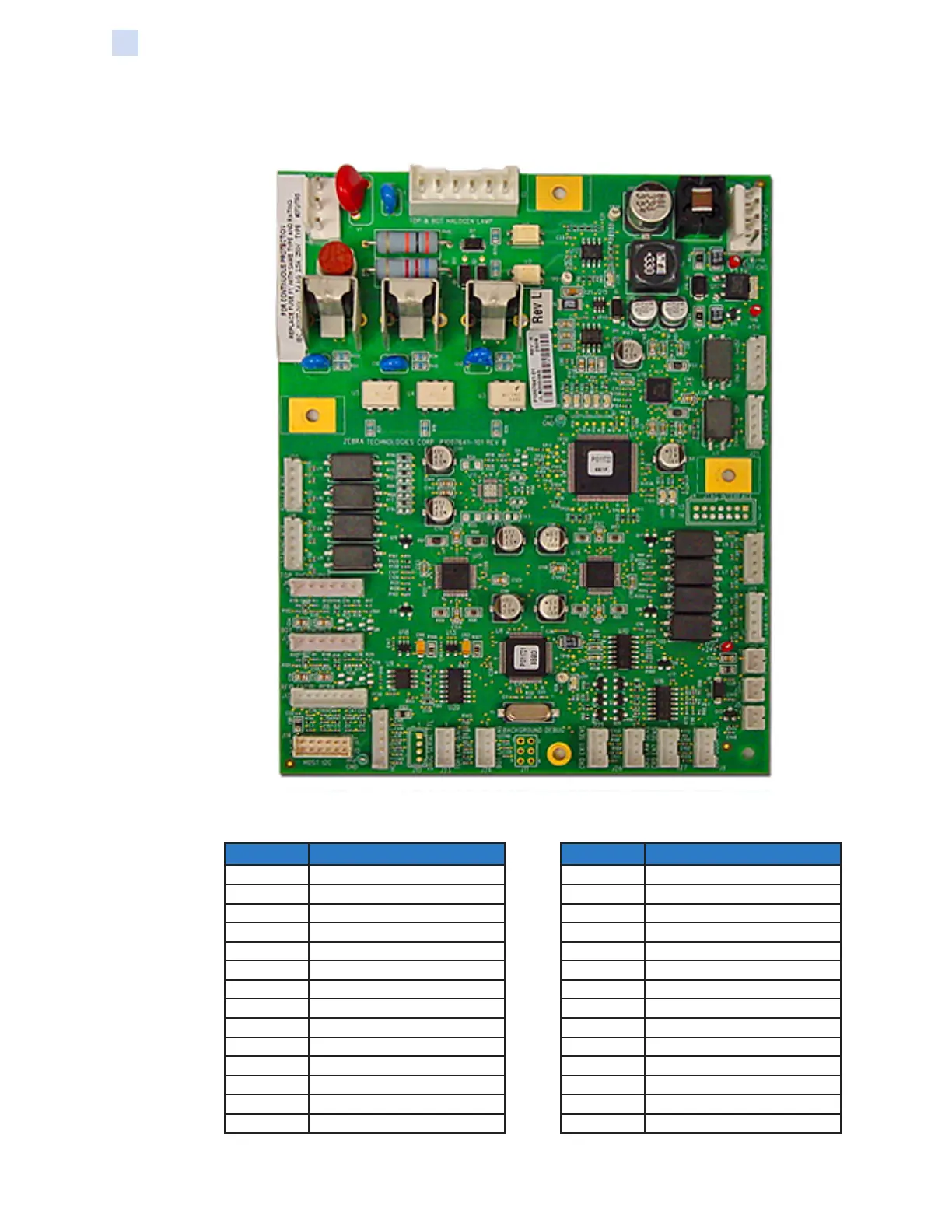

Main PCBA Connections
J15
J22
J21
J4
J19
J17
J12
J3
J5
J8
J2
J1
J10 J23 J24
J11
J25 J26 J27
J9
J20
J18
J6
J7
J13
J14
Connector Description Connector Description
J1 Host Serial TTL J15 DC to DC Power Conversion
J2 Top and Bottom Halogen Lamps J16 N/A
J3 Fan J17 Top Laminator Control Motor
J4 JTAG Interface J18 Staging Motor
J5 Fan J19 Bottom Laminator Control Motor
J6 Top Thermopile J20 Roller Drive Motor
J7 Bottom Thermopile J21 Bottom Cutter
J8 External AC Power J22 Top Cutter
J9 Laminator Door Sensor J23 Top Laminator Sensor
J10 Debug Serial TTL J24 Bottom Laminator Sensor
J11 Background Debug J25 Card Exit Sensor
J12 Fan J26 Card Laminator Sensor
J13 RFID Control PCBA I/F J27 Card Entry Sensor
J14 HOST I2C -

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
