Zebra ZXP 7 series Service Manual

178 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Flipper Module

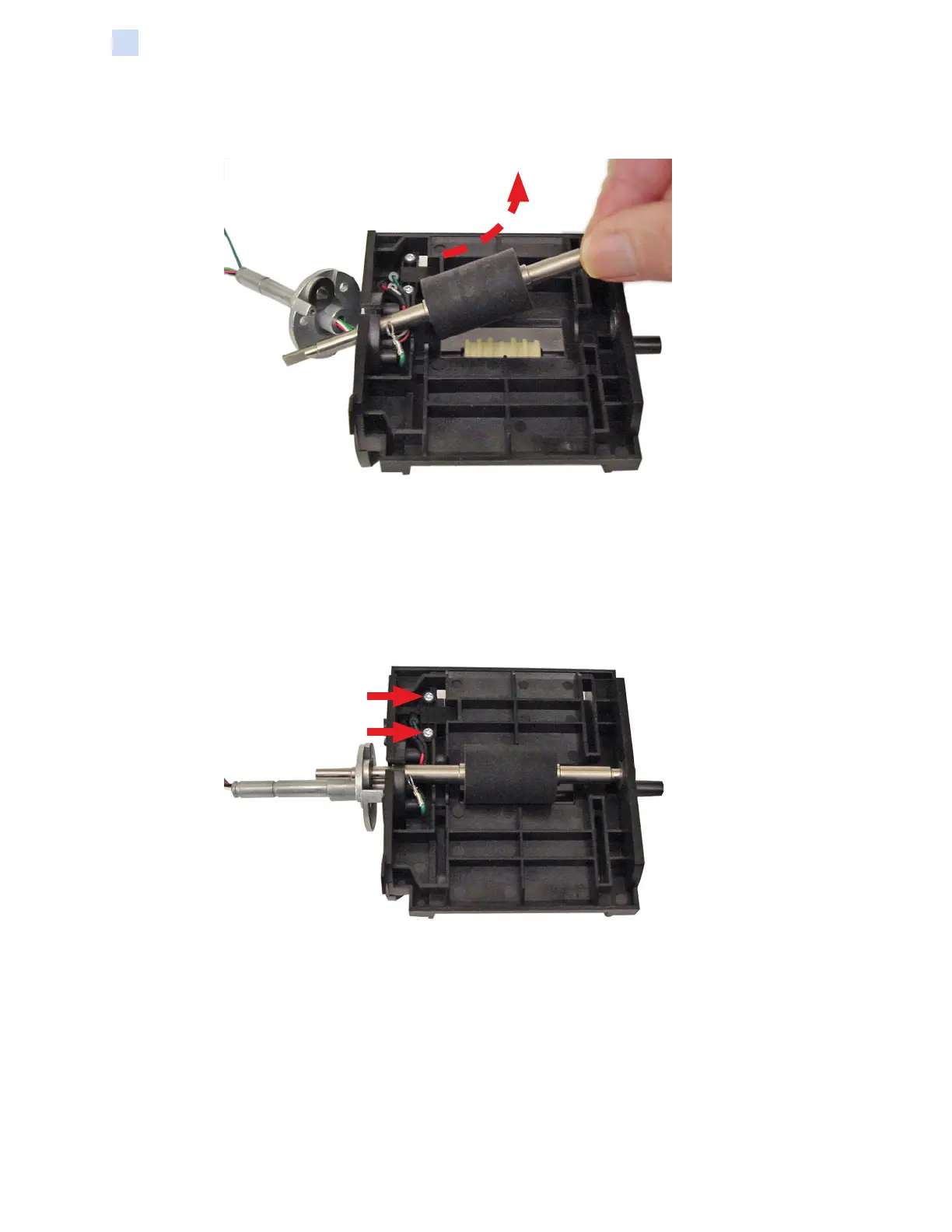

Step 4. Slide the Platen Roller forward, far enough to free the shaft; then pull the
Platen Roller up and out of the Flipper Deck.
Step 5. Set the Platen Roller aside.
Card Present On Flipper Sensor
Step 1. With a TORX T8 driver, remove the three screws holding the Sensor in place
(arrows below).

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
