Zebra ZXP 7 series Service Manual

186 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Printer
Procedures: Options Module
Test and Adjustment
Belt Tension Adjustment

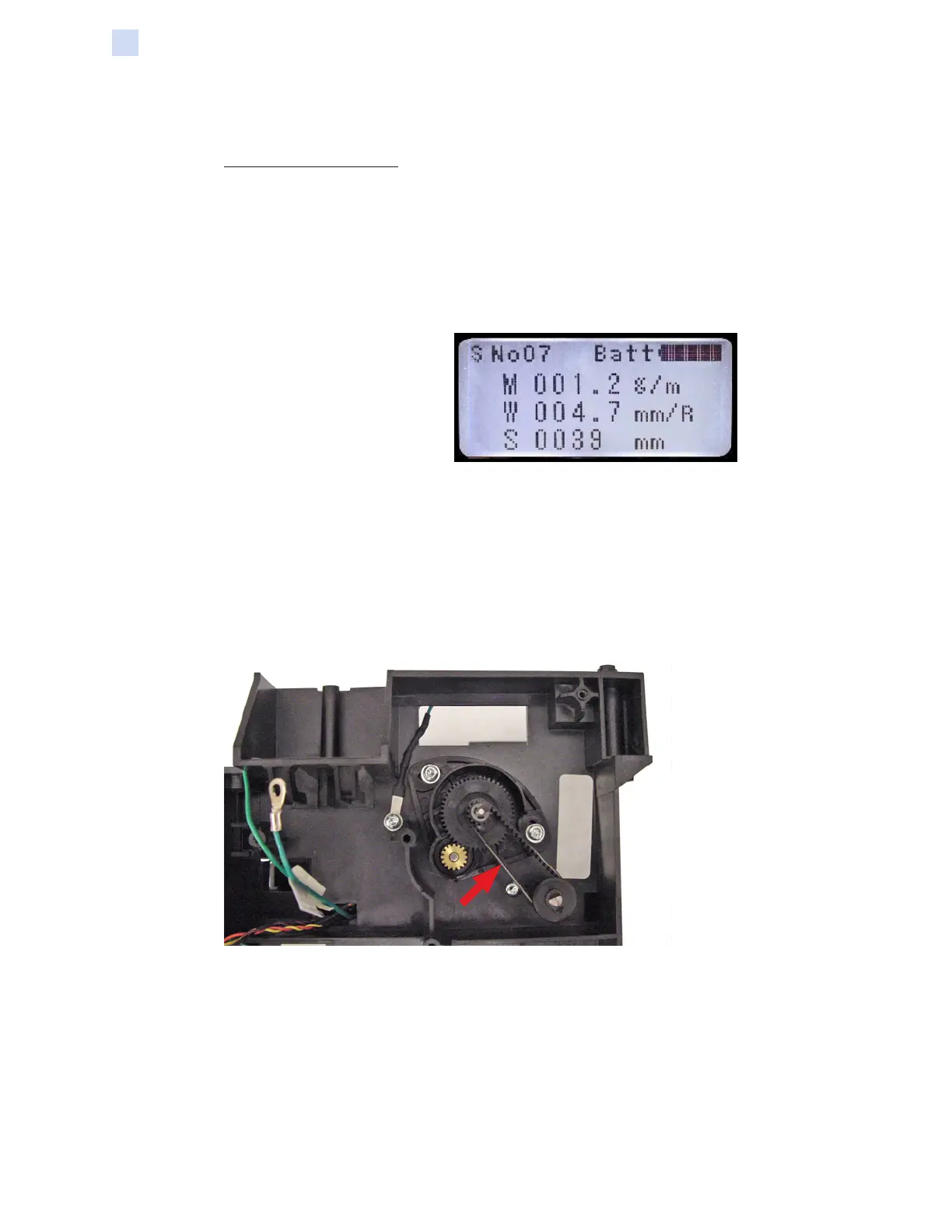

For this test, you will need the Gate 507C Sonic Tension Meter.
Step 1. Turn power on (press the red Power button).
Step 2. Select measurement setting No07 (press the 7 button).
Step 3. Ensure the meter parameters (preset by Zebra Engineering) are set to:
M 001.2 g/m
W 004.7 mm/R
S 0039 mm
Step 4. Set the range to High (press and hold the Range button until the range
selections display, then use the UP and DOWN buttons to select the desired
range).
Step 5. Press the green Measure button. The green light below the number pad will
flash indicating that measurement is in progress.
Step 6. Position/point the meter sensor approximately 5 mm from the belt.
Step 7. Tap the belt until you see the belt tension measurement display.
Step 8. The belt tension should measure between 2.5 to 3.5. If not, readjust the
motor (loosen the mounting screws, reposition the motor, and tighten the
mounting screws); and repeat Step 5 through Step 8.
Step 9. This completes the calibration procedure.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
