Zebra ZXP 7 series Service Manual

224 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the Laminator
Procedures: Lock Replacement for Left Cover

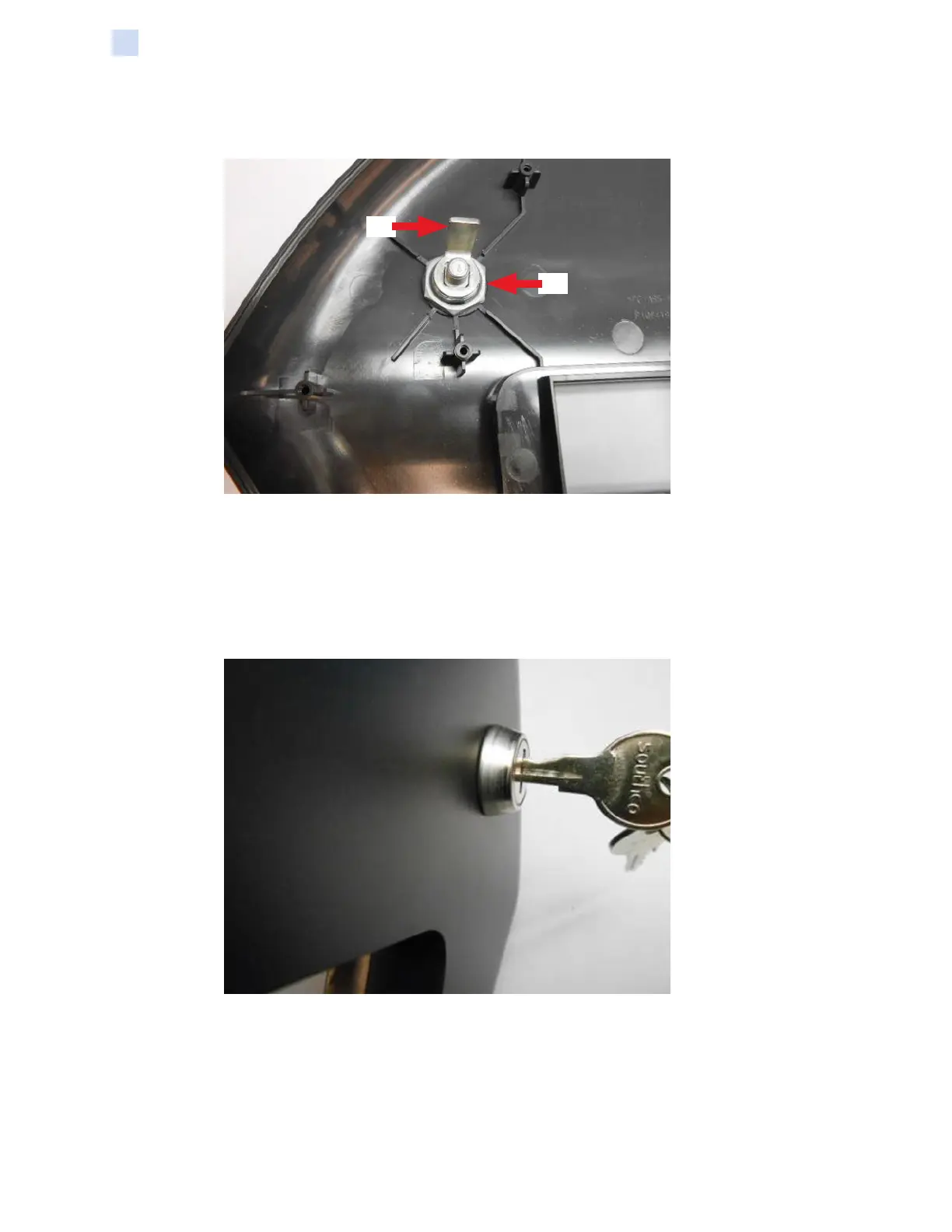

Step 4. Remove the Laminator Lock Pawl; arrow #1 below. Note the orientation of
the Lock Pawl.
#1
#2
Step 5. With an adjustable wrench, remove the large nut (arrow #2 above).
Step 6. Remove the Lock Assembly, and set it aside.
Reassembly
Install the replacement lock with key inserted slightly, teeth up, as shown below.
Continue reassembly by reversing the removal steps.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
