296 ZXP Series 7 Card Printer Service Manual P1036102-007
Replacement Procedures for the High-Capacity Output Hopper
Procedures: High-Capacity Output Hopper

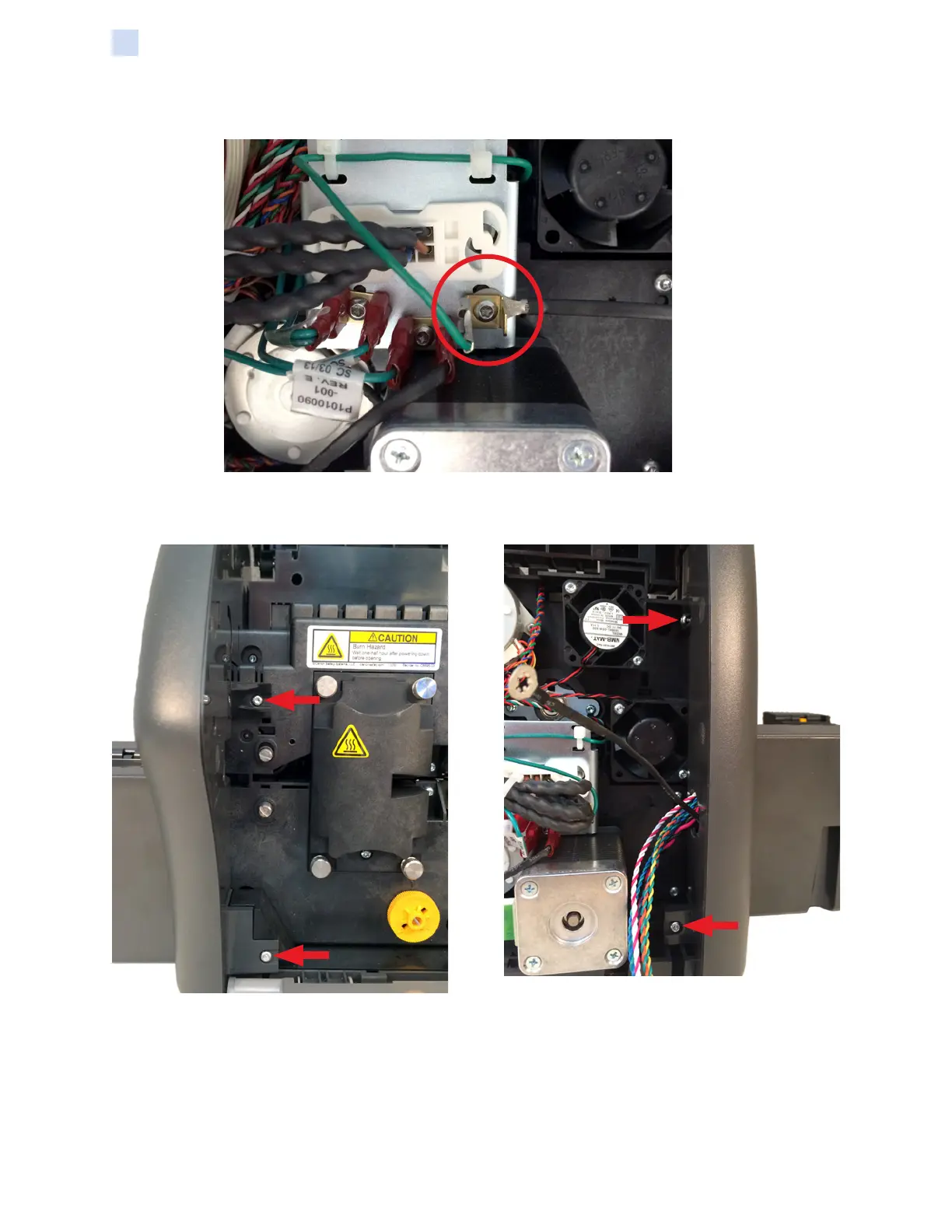

Step 13. Disconnect the ground cable from the laminator ground plate.
Step 14. Remove the four (4) screws attaching the high-capacity output hopper
assembly to the printer.
Front Rear
Step 15. Separate the high-capacity output hopper assembly from the printer.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
