P1036102-007 ZXP Series 7 Card Printer Service Manual 307
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Left Side Panel
Installation

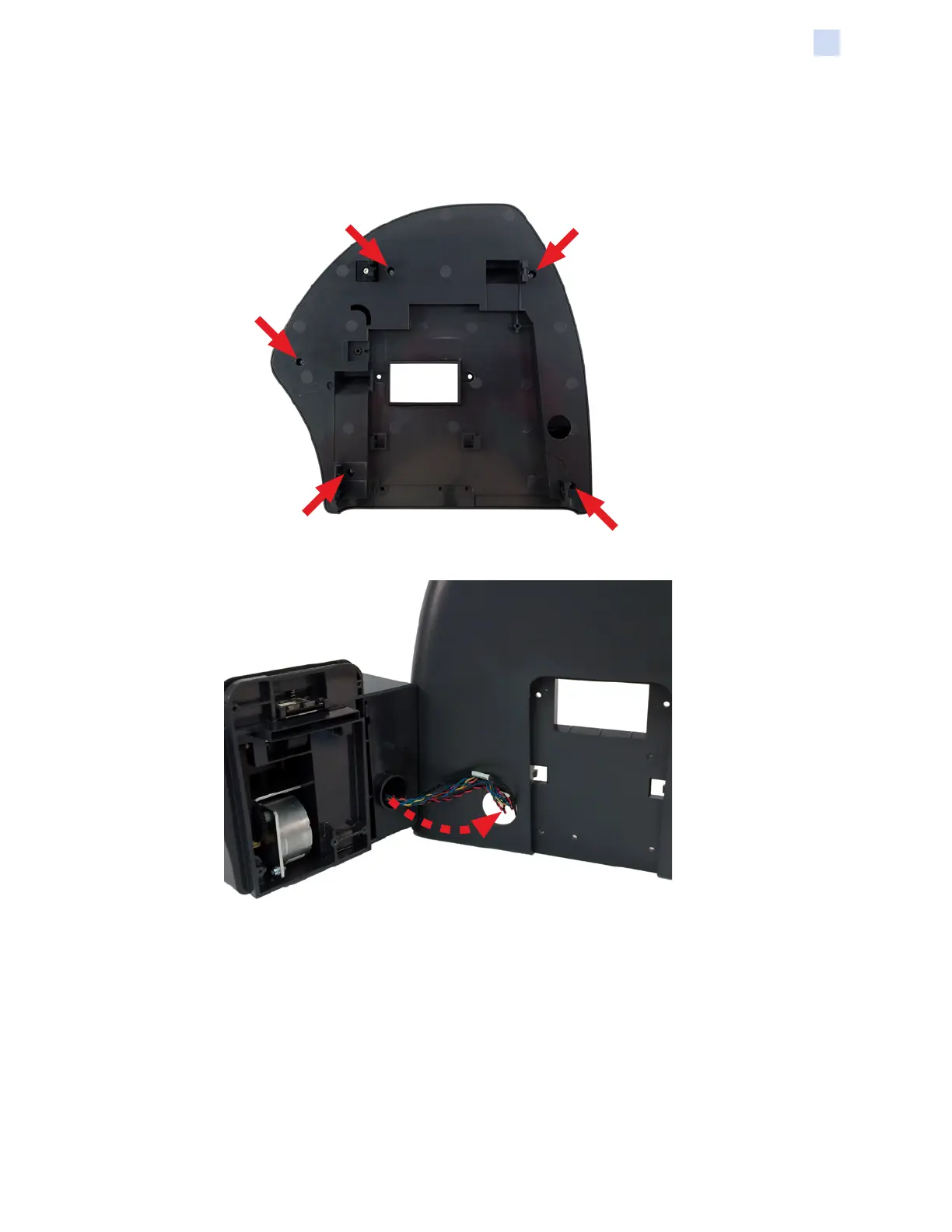

Step 1. Remove the five (5) screws securing the inside panel to the outside panel of
the replacement panel assembly.
Step 2. Run the wire bundle through the access hole in the outside panel.
