Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 317
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Sensors

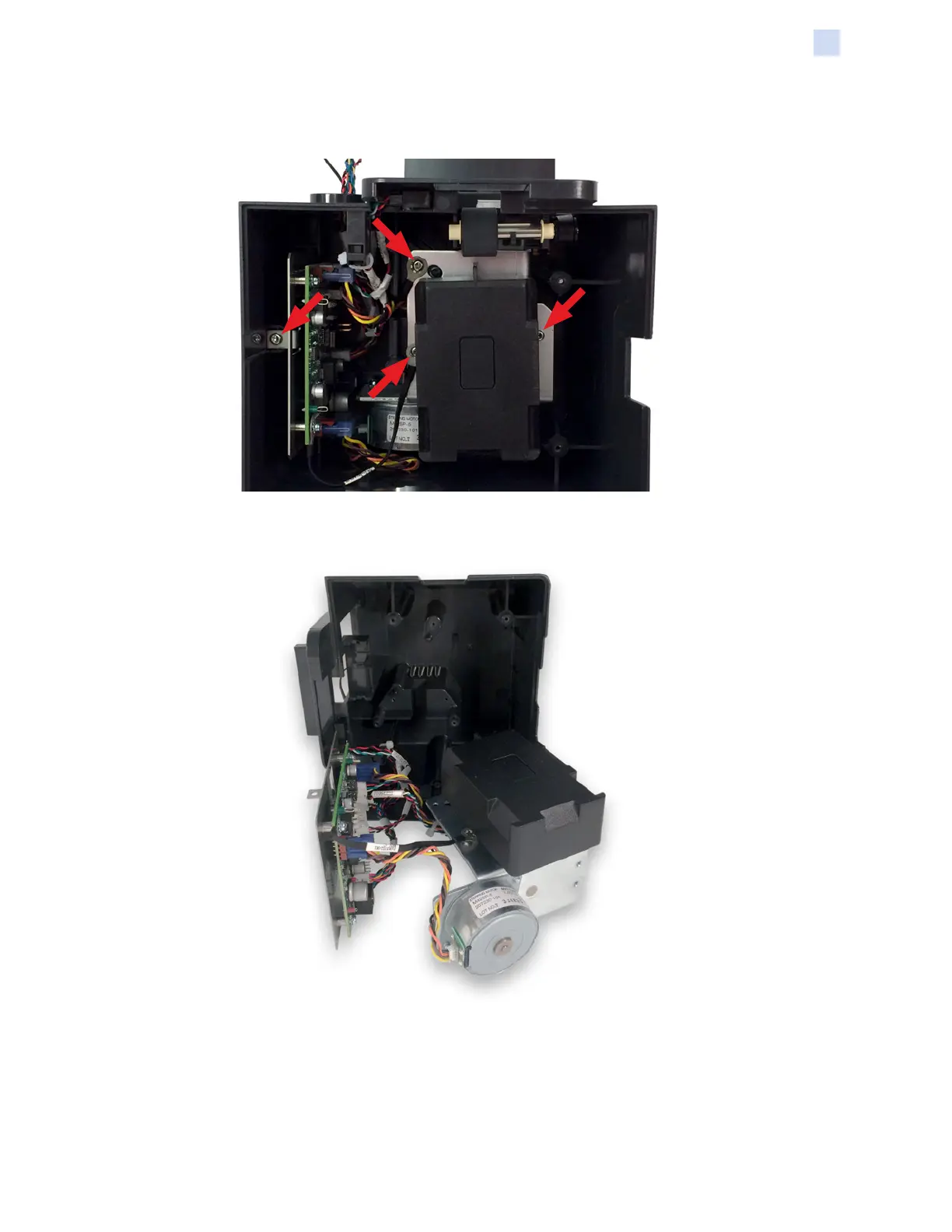

Step 3. Remove the screw securing the PCBA assembly to the base housing, and
the three (3) screws securing the drive assembly to the base housing.
Step 4. Carefully pull the PCBA assembly and the drive assembly out from the base
housing.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
