P1036102-007 ZXP Series 7 Card Printer Service Manual 341
Replacement Procedures for the High-Capacity Output Hopper
Procedures: Elevator

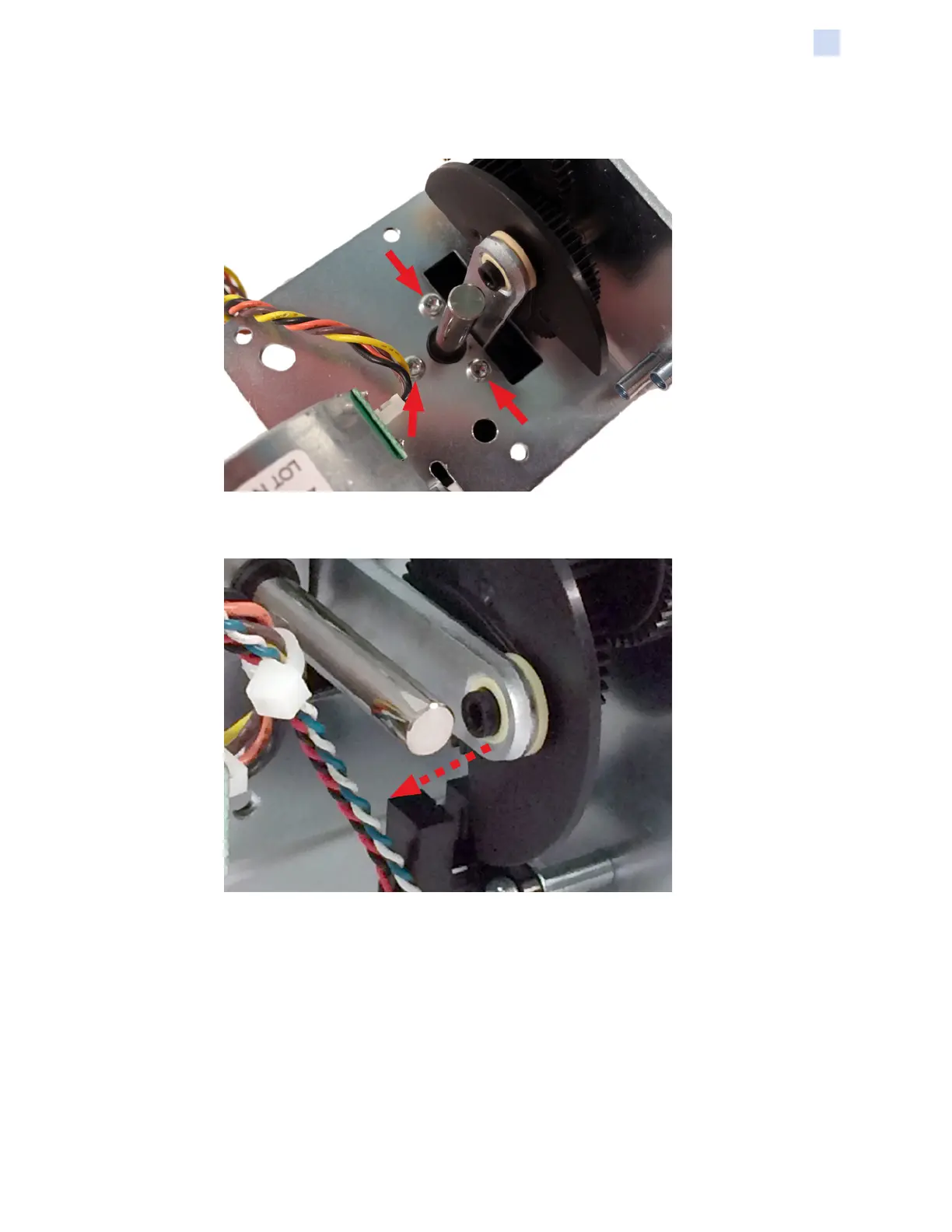

Step 5. Remove the three screws securing the elevator to the drive assembly base
plate.
Step 6. Slide the elevator connecting rod and the flanged bearing o from the lift
cam post.
Step 7. Remove the elevator assembly.
