Zebra ZXP 7 series Service Manual

P1036102-007 ZXP Series 7 Card Printer Service Manual 369
Cleaning
Cleaning the Laminator

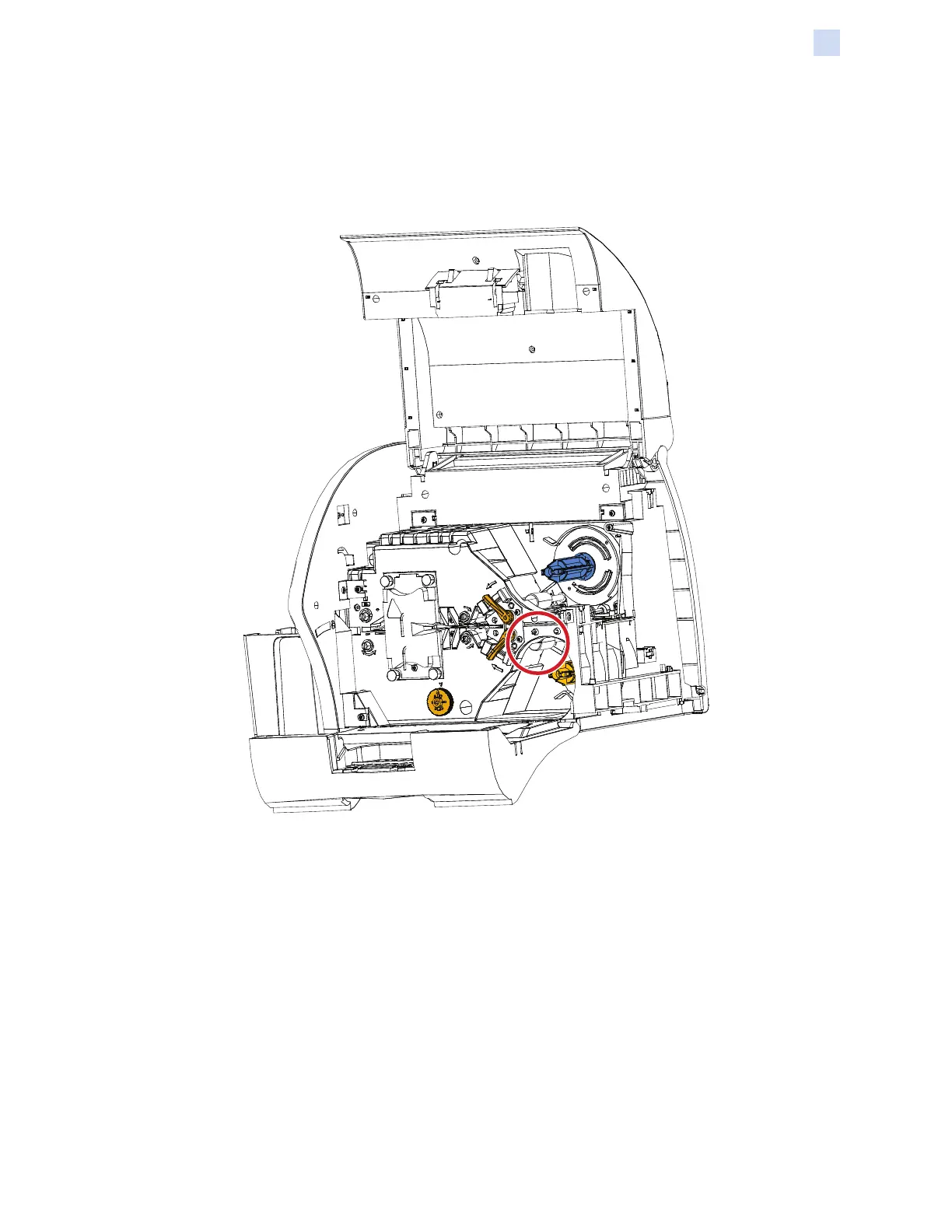

Step 8. For double-sided laminators only: Locate the bottom roller (circled below) for
the lower cassette.
Step 9. Prepare a second Cleaning Swab.
Step 10. Locate the bottom roller (circled below) for the lower cassette.
Step 11. When ready, press Bottom.
Step 12. Clean the bottom media roller by moving the swab tip side-to-side until the
roller stops turning. Only use moderate pressure.
Step 13. Press Exit to conclude the laminator rollers cleaning process.
Step 14. The OCP will return to the Clean Printer Menu.
Step 15. Install the laminate (top and bottom spools), and close the covers.

Zebra ZXP 7 series Specifications

General

Print Resolution	300 dpi
Connectivity	USB 2.0, Ethernet
Memory	64 MB standard
Print Technology	Dye-sublimation thermal transfer
Card Capacity	200 cards input hopper, 100 cards output hopper
Card Sizes	CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Power Requirements	100-240 VAC, 50-60 Hz
