P1036102-007 ZXP Series 7 Card Printer Service Manual 59
Replacement Procedures for the Printer
Procedures: Print Cover

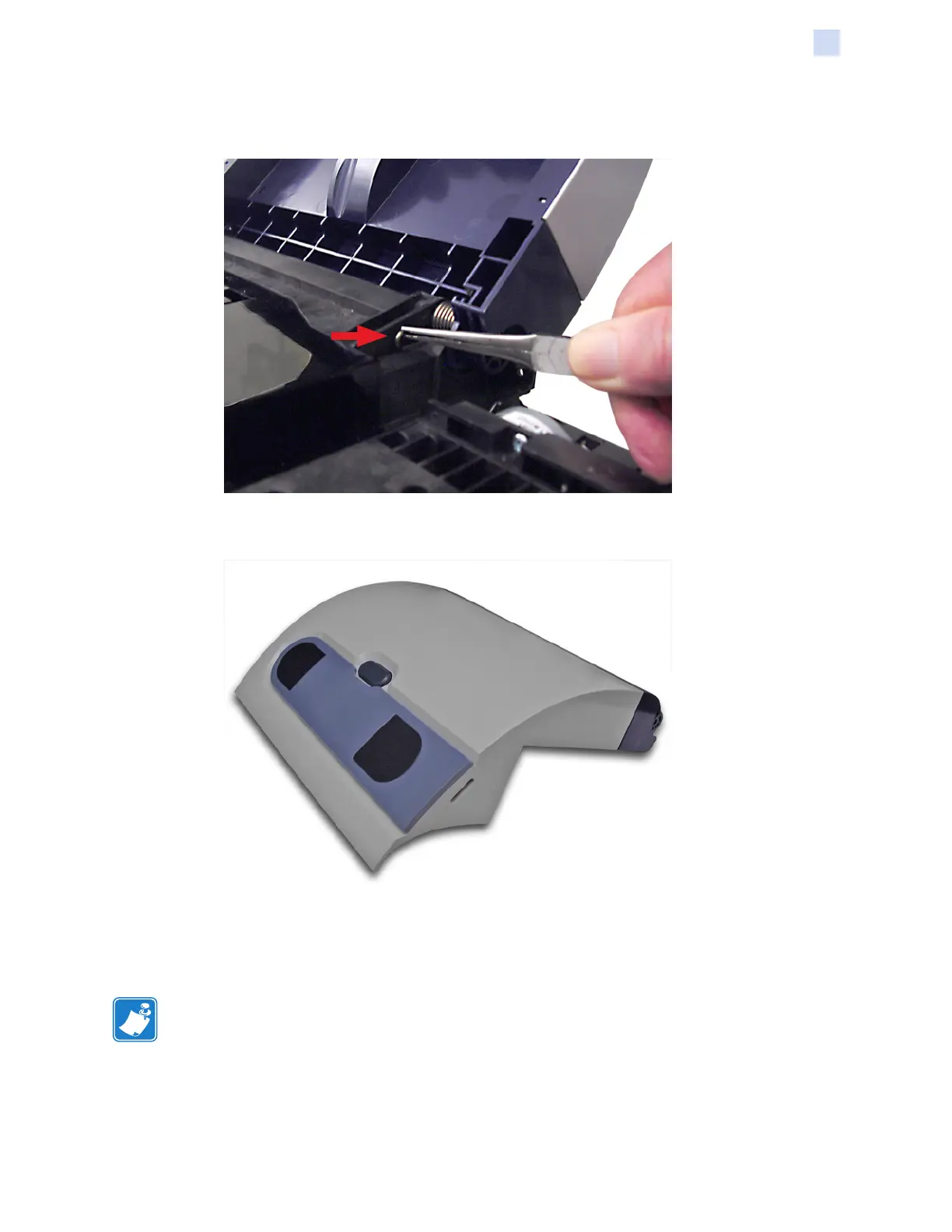

Step 4. Free the two springs (right side and left side of the Print Cover). Note that
you may need to use needle-nose pliers.
Step 5. Slide the cover to the rear thereby freeing the left and right guide pins from
their respective guides.
Step 6. Set the Print Cover (and two springs) aside.
Replacement
Note • the springs go in the slots on the Print Cover when reassembling.
