Chapter 13 Customization
N4100 User’s Guide
126

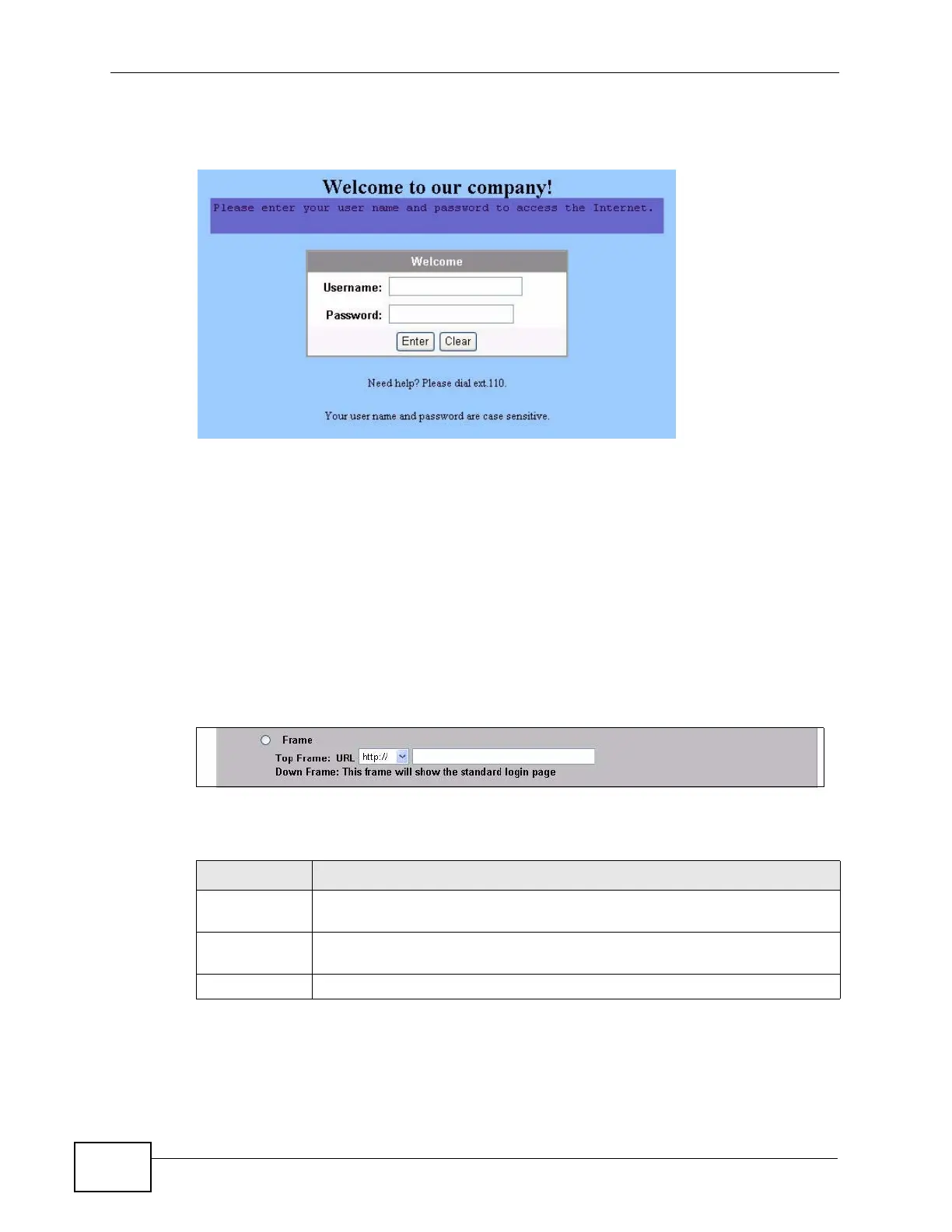

Figure 57 Subscriber Login Page Example: Advanced
13.2.4 Frame
The Frame login screen splits the login screen into two frames: top and bottom.
You can specify a web site to be displayed in the top frame with the user name
and password prompt displayed in the bottom frame. The frame login screen is
useful for you to link to a web site (such as the company web site) as your
welcome screen. In addition, you can externally design a web page with images
and/or advanced multimedia features.
Select the Frame option in the Login Page screen.
Figure 58 ADVANCED > CUSTOMIZATION > Login Page: Frame
The following table describes the related labels.
Table 21 ADVANCED > CUSTOMIZATION > Login Page: Frame
LABEL DESCRIPTION
Frame Select this option to configure and set the N4100 to display the
subscriber login screen in two frames.
Top Frame Enter a web site address in the URL Link field, for example, http://
www.zyxel.com. You can use up to 350 ASCII characters.
Down Frame The bottom frame displays the standard subscriber login page.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
